ZFIN Figure: Min et al., 2020, FIGURE 6

ZFIN ID: ZDB-FIG-200829-91

ZFIN ID: ZDB-FIG-200829-91

Min et al., 2020 - Systems Analysis of Biliary Atresia Through Integration of High-Throughput Biological Data. Frontiers in Physiology 11:966 Full text @ Front. Physiol.

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Gene:	mCherry
Fish:	s733Tg
Anatomical Term:	intrahepatic bile duct epithelial cell
Stage:	Day 5

PHENOTYPE:

Fish:	s733Tg
Condition:	chemical treatment by environment: dimethyloxalylglycine
Observed In:	bile acid and bile salt transport
Stage:	Day 5

FIGURE 6

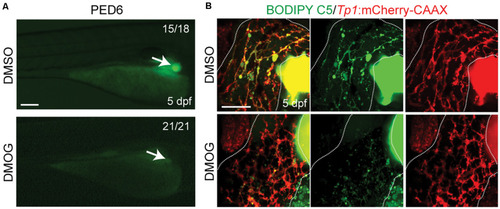

Activation of Hif1a signaling impairs biliary morphogenesis. (A) Epifluorescence images showing PED6 accumulation in the gallbladder (arrows). (B) Confocal projection images showing BODIPY C5 staining (green) and Tp1:mCherry-CAAX expression (red; BEC membrane) in the liver (dotted lines). Scale bars: 200 (A), 50 μm (B).

Gene Expression Details

Gene	Antibody	Fish	Conditions	Stage	Anatomy	Assay
mCherry		s733Tg	standard conditions	Day 5	intrahepatic bile duct epithelial cell	IFL

Antibody Labeling Details No data available

Phenotype Details

Fish	Conditions	Stage	Phenotype
s733Tg	chemical treatment by environment: dimethyloxalylglycine	Day 5	bile acid and bile salt transport disrupted, abnormal

Acknowledgments:
ZFIN wishes to thank the journal Frontiers in Physiology for permission to reproduce figures from this article. Please note that this material may be protected by copyright. Full text @ Front. Physiol.
