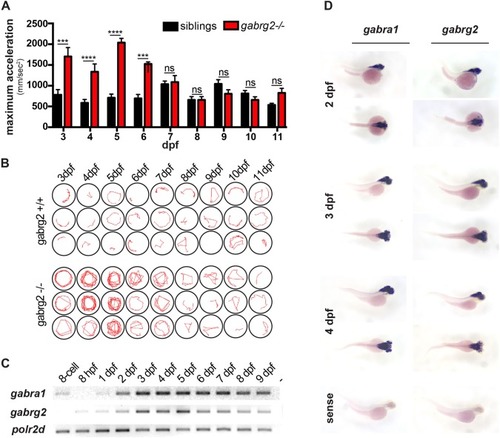

Fig. 5.

The photic reflex seizures of gabrg2−/−fish are transient during the early larval stage. (A) Quantification of the maximum acceleration upon light stimulus of gabrg2−/− and gabrg2+/+ siblings at different ages (from 3 to 11 dpf). A significant difference is observed at 3, 4, 5 and 6 dpf only. (****P<0.0001, ***P<0.001, unpaired t-test.) (B) Representative swimming tracks (15 s following photic stimulus) of gabrg2+/+ versus gabrg2−/− larvae at different ages, showing that the stereotypical whirlpool behavior is not observable from 8 dpf. Of note is that the phenotype is the strongest and the most penetrant at 5 dpf. (C) RT-PCR for gabra1 and gabrg2 transcripts over wild-type zebrafish development. The polr2d gene is used as a house-keeping gene. (D) Whole-mount in situ hybridization on whole-mount embryos using an anti-sense probe against gabra1 or gabrg2 transcripts. Both genes are strongly expressed in the brain and their expression is largely overlapping. (A sense probe is shown as a negative control.)

Expression Data
Genes:
Fish:
Anatomical Terms:
Stage Range: 8-cell to Days 7-13

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Observed In:
Stage Range: Protruding-mouth to Days 7-13

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dis. Model. Mech.
