Fig. 3
- ID
- ZDB-FIG-190624-1
- Publication
- van der Klaauw et al., 2019 - Human Semaphorin 3 Variants Link Melanocortin Circuit Development and Energy Balance
- Other Figures
- All Figure Page
- Back to All Figure Page

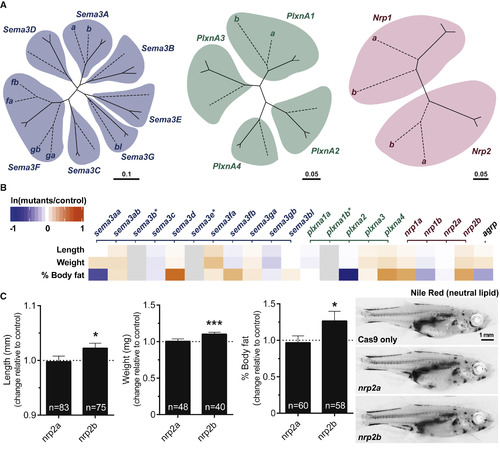

Disruption of Semaphorin 3 S, Neuropilins, and Plexins Alters Energy Homeostasis in Zebrafish (A) Unrooted phylogenetic trees of Sema3, PlxnA, and Nrp genes. Genes from zebrafish (dotted lines) and mouse and human (solid lines) were used to construct the trees. Where zebrafish genes have been duplicated, a letter is used to identify paralogs. Scale bars, number of substitutions per amino acid site. (B) Heatmap showing change in length, weight, and percentage of body fat in deletion mutants relative to Cas9-only control fish; decrease (blue), increase (orange) in the phenotype of mutants relative to control fish (for the natural log fold change); ∗genes not screened; agrp, positive control. (C) Length (mm), weight (mg) and percentage of body fat in nrp2a and nrp2bmutant fish relative to Cas9-only injected control fish. Data represented as mean ± SEM. ∗p < 0.05; ∗∗∗p < 0.001 in one-sample t tests. Representative images of Nile Red-stained zebrafish showing increased adiposity and size of nrp2b mutant fish (right). Scale bar, 1 mm.
|
