ZFIN ID: ZDB-FIG-170227-30
Jao et al., 2017 - A role for Gle1, a regulator of DEAD-box RNA helicases, at centrosomes and basal bodies. Molecular biology of the cell   28:120-127 Full text @ Mol. Biol. Cell
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Knockdown Reagents:
Observed In:
Stage Range: 5-9 somites to Pec-fin

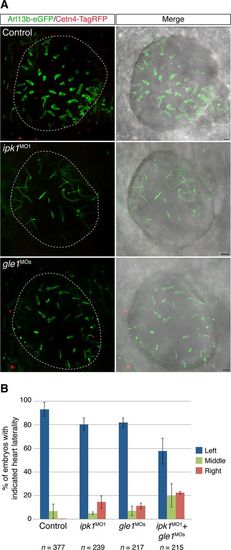

Fig. 4

Depletion of Gle1 reduces ciliary beating and alters left–right asymmetry in zebrafish. (A) The axoneme and the basal body of the cilia were mosaically labeled by Arl13b-eGFP and Cetn4-TagRFP, respectively, in uninjected, ipk1MO1-injected, or gle1MOs-injected embryos. Motile cilia in the Kupffer’s vesicle were imaged at six- to nine-somite stages from the dorsal side, anterior to the right. Normal ciliary beating is detected by a fan-like morphology in the control. Scale bar, 5 μm. (B) Tg(-5.1mnx1:TagRFP) embryos were injected with suboptimal doses of translation-blocking ipk1 morpholino (ipk1MO1, 4 ng), a mix of two nonoverlapping translation-blocking gle1 morpholinos (gle1MOs, 1.5 ng each), or a combination of both ipk1MO1 and gle1MOs at the one-cell stage. The direction of the heart looping (TagRFP+) was assessed at 60–72 h post fertilization. Three independent injections were performed for each condition. Values are mean ± SEM; n is the number of embryos analyzed in each condition.

Gene Expression Details No data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
AB + MO1-gle1 + MO2-gle1 control 5-9 somites Kupffer's vesicle cilium movement decreased rate, abnormal
AB + MO1-ippk control 5-9 somites Kupffer's vesicle cilium movement decreased rate, abnormal
vu504Tg + MO1-gle1 + MO1-ippk + MO2-gle1 standard conditions Pec-fin determination of heart left/right asymmetry disrupted, abnormal
Pec-fin heart looping disrupted, abnormal
Pec-fin heart tube position, abnormal
vu504Tg + MO1-gle1 + MO2-gle1 control Pec-fin determination of heart left/right asymmetry disrupted, abnormal
Pec-fin heart looping disrupted, abnormal
Pec-fin heart tube position, abnormal
vu504Tg + MO1-ippk control Pec-fin determination of heart left/right asymmetry disrupted, abnormal
Pec-fin heart looping disrupted, abnormal
Pec-fin heart tube position, abnormal
