FIGURE

Fig. 1

ID
ZDB-FIG-160323-28
Publication
Zhang et al., 2016 - An oxygen-insensitive Hif-3α isoform inhibits Wnt signaling by destabilizing the nuclear β-catenin complex
Other Figures
All Figure Page
Back to All Figure Page
Fig. 1

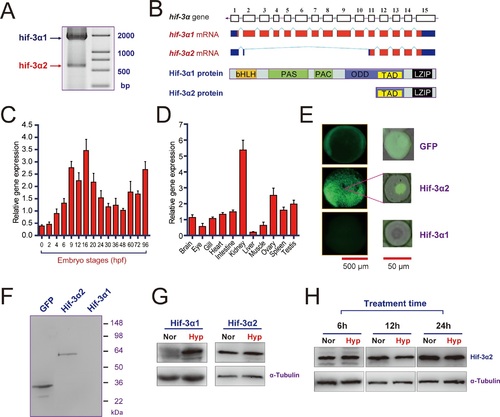

Hif-3α2 is an oxygen-insensitive Hif-3α isoform resulting from alternative splicing.(A) Hif-3α isoform 1 (Hif-3α1) and isoform 2 (Hif-3α2) mRNA expression. RNA isolated from zebrafish embryos was analyzed by RT-PCR. (B) Schematic illustration of the hif-3α gene (top), Hif-3α1 and Hif-3α2 mRNAs (middle), and proteins (bottom). (C,D) Hif-3α2 expression in early development (C) and in adult tissues (D). The Hif-3α2 mRNA levels were measured by qRT-PCR and normalized by β-actin levels. Values are means +S.E. (n = 3). (E,F) Hif-3α1-EGFP but not Hif-3α2-EGFP is degraded under normoxia in vivo. Capped mRNA encoding EGFP, Hif-3α1-EGFP, and Hif-3α2-EGFP was injected into zebrafish embryos. The embryos were raised to 6 hpf under normoxia and observed under fluorescence microscopy (E) or analyzed by Western blotting using an anti-GFP antibody (F). (G) 6-hpf wild-type embryos were transferred to hypoxic (Hyp) or normoxic water (Nor) for 24 hr and analyzed by Western blotting using a specific Hif-3α antibody. (H) Adult fish were subjected to hypoxia treatments for the indicated time period and analyzed by Western blotting.

Expression Data
Gene:
Antibody:
Fish:
Condition:
Anatomical Terms:
Stage Range: 1-cell to Adult

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Prim-15

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Elife
