ZFIN Figure: Yan et al., 2015, Fig. 3

ZFIN ID: ZDB-FIG-150923-10

ZFIN ID: ZDB-FIG-150923-10

Yan et al., 2015 - Stimulation of hepatocarcinogenesis by neutrophils upon induction of oncogenic kras expression in transgenic zebrafish. Journal of hepatology 63(2):420-8 Full text @ J. Hepatol.

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Genes:	DsRed2 EGFP
Fish:	nz50Tg nz50Tg + MO1-irf8 nz50Tg + MO3-csf3r gz32Tg; nz50Tg gz32Tg; nz50Tg + MO1-irf8 gz32Tg; nz50Tg + MO3-csf3r
Condition:	chemical treatment: doxycycline monohydrate
Knockdown Reagents:	MO1-irf8 MO3-csf3r
Anatomical Terms:	liver neutrophil
Stage:	Day 6

PHENOTYPE:

Fish:	nz50Tg + MO3-csf3r gz32Tg; nz50Tg gz32Tg; nz50Tg + MO1-irf8
Condition:	chemical treatment: doxycycline monohydrate
Knockdown Reagents:	MO1-irf8 MO3-csf3r
Observed In:	liver liver neutrophil
Stage:	Day 6

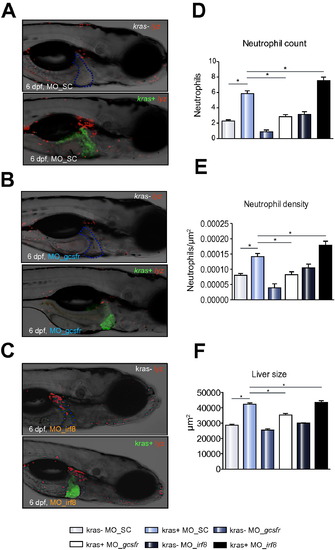

Fig. 3

Effect of morpholino suppression of neutrophil differentiation and morpholino-mediated expansion of neutrophil population on liver size. (A–C) Representative images of 6 dpf kras-/lyz+ and kras+/lyz+ larvae injected with different morpholinos: Mo-SC (A), Mo-gcsfr (B) or Mo-irf8 (C). (D–F) Neutrophil counts (D) and density (E) in the liver area and liver size (F) after morpholino injection. n >15 in each group. Statistical significant: ^*p <0.05.

Gene Expression Details

Gene	Fish	Conditions	Stage	Anatomy	Assay
DsRed2	gz32Tg; nz50Tg	chemical treatment: doxycycline monohydrate	Day 6	neutrophil	IFL
	gz32Tg; nz50Tg + MO1-irf8	chemical treatment: doxycycline monohydrate	Day 6	neutrophil	IFL
	gz32Tg; nz50Tg + MO3-csf3r	chemical treatment: doxycycline monohydrate	Day 6	neutrophil	IFL
	nz50Tg	chemical treatment: doxycycline monohydrate	Day 6	neutrophil	IFL
	nz50Tg + MO1-irf8	chemical treatment: doxycycline monohydrate	Day 6	neutrophil	IFL
	nz50Tg + MO3-csf3r	chemical treatment: doxycycline monohydrate	Day 6	neutrophil	IFL
EGFP	gz32Tg; nz50Tg	chemical treatment: doxycycline monohydrate	Day 6	liver	IFL
	gz32Tg; nz50Tg + MO1-irf8	chemical treatment: doxycycline monohydrate	Day 6	liver	IFL
	gz32Tg; nz50Tg + MO3-csf3r	chemical treatment: doxycycline monohydrate	Day 6	liver	IFL

Antibody Labeling Details No data available

Phenotype Details

Fish	Conditions	Stage	Phenotype
gz32Tg; nz50Tg	chemical treatment: doxycycline monohydrate	Day 6	liver increased size, abnormal
		Day 6	liver neutrophil increased amount, abnormal
gz32Tg; nz50Tg + MO1-irf8	chemical treatment: doxycycline monohydrate	Day 6	liver increased size, abnormal
		Day 6	liver neutrophil increased amount, abnormal
nz50Tg + MO3-csf3r	chemical treatment: doxycycline monohydrate	Day 6	liver neutrophil decreased amount, abnormal
