Fig. 5

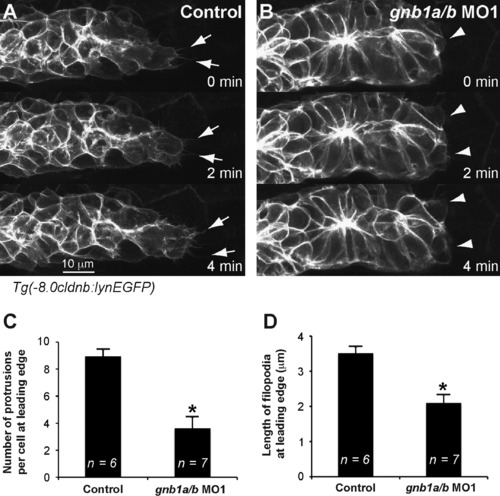

Gβ1 signaling regulates protrusive activity in the leading region of the pLLP. (A, B) Snapshots of the leading region of the pLLP from 30-min confocal time-lapse movies of control (A) or gnb1a/b MO1-injected (B) Tg(-8.0cldnb:lynEGFP) embryos, at 30 hpf, using a 40×/NA 1.3 objective (Movies 7 and 8). White arrows, protrusions at the leading edge of the pLLP. (C, D) Number of protrusions per cell (C) and average length of the filopodia (D) at the leading edge of the pLLP, in control or gnb1a/b MO1-injected embryos. *, p<0.01 vs. control. |
Expression Data
| Gene: | |
|---|---|
| Fish: | |
| Knockdown Reagents: | |
| Anatomical Term: | |
| Stage: | Prim-15 |
Expression Detail
Antibody Labeling
Phenotype Data
| Fish: | |
|---|---|
| Knockdown Reagents: | |
| Observed In: | |
| Stage: | Prim-15 |
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 385(2), Xu, H., Ye, D., Behra, M., Burgess, S., Chen, S., and Lin, F., Gbeta1 controls collective cell migration by regulating the protrusive activity of leader cells in the posterior lateral line primordium, 316-27, Copyright (2014) with permission from Elsevier. Full text @ Dev. Biol.
