ZFIN ID: ZDB-FIG-140325-32
Hong et al., 2013 - Cholinergic left-right asymmetry in the habenulo-interpeduncular pathway. Proceedings of the National Academy of Sciences of the United States of America   110(52):21171-21176 Full text @ Proc. Natl. Acad. Sci. USA
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Anatomical Terms:
Stage: Day 4

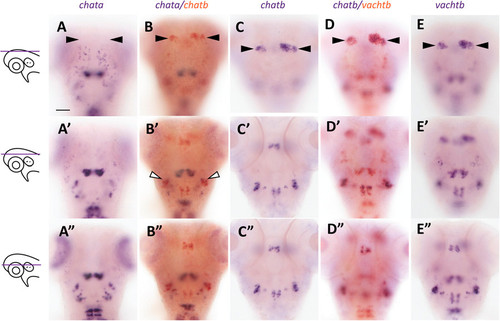

Fig. S2

Coexpression of chatb with chata and vachtb. Single and double ISH for chata (A–A22), chata/chatb (B–B22), chatb (C–C22), chatb/vachtb (D–D22), and vachtb (E–E22) in 4-d postfertilization (dpf) larvae, imaged at the designated focal plane (at left). (A–E) Arrowheads mark the Hb. (B2) White arrowheads indicate chata and chatb coexpression in hindbrain neurons. (Scale bar: 50 μm.)

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
chata WT standard conditions Day 4 habenula ISH
Day 4 hindbrain neuron ISH
chatb WT standard conditions Day 4 habenula ISH
Day 4 hindbrain neuron ISH
slc18a3b WT standard conditions Day 4 habenula ISH
Day 4 hindbrain neuron ISH
Antibody Labeling Details No data available
Phenotype Details No data available
