ZFIN ID: ZDB-FIG-131007-5
Andersson et al., 2012 - Adenosine Signaling Promotes Regeneration of Pancreatic beta Cells In Vivo. Cell Metabolism   15(6):885-894 Full text @ Cell Metab.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Antibody:
Fish:
Conditions:
Knockdown Reagent:
Anatomical Terms:
Stage Range: Day 5 to Day 6
PHENOTYPE:
Fish:
Conditions:
Knockdown Reagent:
Observed In:
Stage: Day 6

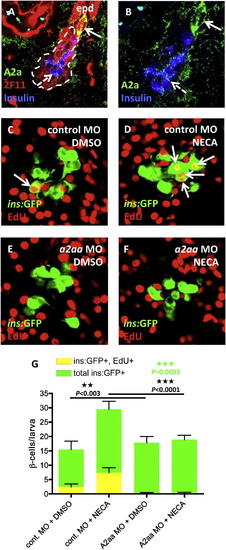

Fig. 5

The Adenosine Receptor A2aa Mediates the Regenerative Effect of NECA

(A) Confocal image of the expression of the A2a adenosine receptors in a 5 dpf larva. The 2F11 antibody marks the extrapancreatic duct (epd) as well as the endocrine islet (outlined by the dashed line). High expression of A2a is found in cells budding off the epd (arrow), and low expression is found in insulin-expressing β cells (dashed arrow) and cells scattered throughout the exocrine pancreas.

(B) For clarity, a magnified view of (A), without the red color, is displayed.

(C–G) Tg(ins:GFP);Tg(ins:CFP-NTR) embryos were injected with a control MO or an a2aa MO at the one-cell stage and subsequently treated with MTZ from 3-4 dpf to ablate the β cells, and DMSO/NECA and EdU during β cell regeneration from 4-6 dpf. (C) Confocal image of a DMSO-treated control MO-injected larva displaying one β cell that had incorporated EdU (arrow). (D) Confocal image of a NECA-treated control MO-injected larva displaying four β cells that had incorporated EdU (arrows). (E) Confocal image of a DMSO-treated a2aa MO-injected larva where no β cells had incorporated EdU. (F) Confocal image of a NECA-treated a2aa MO-injected larva where no β cells had incorporated EdU. (G) Quantification of the total number of β cells and the number of β cells that incorporated EdU per larva during DMSO or NECA treatment of control MO-injected or a2aa MO-injected embryos. p values in black refer to Tg(ins:GFP)+, EdU+ cells, whereas the p value in green refers to total number of Tg(ins:GFP)+ cells. n = 11–25 larvae per group. Error bars represent SEM. See also Figure S6.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
adora2aa WT standard conditions Day 5 exocrine pancreas IHC
Day 5 extrapancreatic duct IHC
Day 5 pancreatic B cell IHC
GFP s892Tg; zf5Tg chemical treatment: pharmaceutical Day 6 pancreatic B cell IHC
s892Tg; zf5Tg chemical treatment: drug Day 6 pancreatic B cell IHC
s892Tg; zf5Tg + MO2-adora2aa chemical treatment: pharmaceutical Day 6 pancreatic B cell IHC
s892Tg; zf5Tg + MO2-adora2aa chemical treatment: drug Day 6 pancreatic B cell IHC
ins WT standard conditions Day 5 pancreatic B cell IHC
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
Ab-2F11 IHC WT standard conditions Day 5 endocrine pancreas
IHC Day 5 extrapancreatic duct
Phenotype Details
Fish Conditions Stage Phenotype
s892Tg; zf5Tg chemical treatment: pharmaceutical Day 6 pancreas has fewer parts of type pancreatic B cell, abnormal
Day 6 type B pancreatic cell proliferation occurrence, normal
s892Tg; zf5Tg chemical treatment: drug Day 6 pancreas tissue regeneration increased process quality, abnormal
Day 6 pancreatic B cell proliferative, abnormal
Day 6 type B pancreatic cell proliferation increased occurrence, abnormal
s892Tg; zf5Tg + MO2-adora2aa chemical treatment: pharmaceutical Day 6 pancreas has fewer parts of type pancreatic B cell, abnormal
Day 6 type B pancreatic cell proliferation occurrence, normal
s892Tg; zf5Tg + MO2-adora2aa chemical treatment: drug Day 6 pancreas has fewer parts of type pancreatic B cell, abnormal
Day 6 type B pancreatic cell proliferation occurrence, normal
