FIGURE

Fig. 3

ID

ZDB-FIG-130208-6

Publication

Kizil et al., 2012 - Regenerative Neurogenesis from Neural Progenitor Cells Requires Injury-Induced Expression of Gata3

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

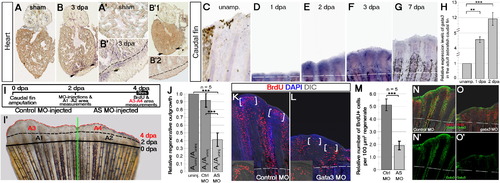

Gata3 Expression Is Injury Induced in Regenerating Heart and Caudal Fin and Is Required for Caudal Fin Regeneration(A) gata3 ISH on sham-operated zebrafish heart. (A′) High-magnification image.(B) gata3 ISH on amputated heart. Amputation plane, black arrows. (B2) High-magnification image. Dashed lines, amputation plane. (B′1) gata3 ISH with the sense probe control on amputated heart. (B′2) High-magnification image from the amputation margin of the heart in (B′1).(C–G) Time course gata3 ISH on adult zebrafish caudal fin: unamputated (C), 1 dpa (D), 2 dpa (E), 3 dpa (F), and 7 dpa (G).(H) Quantitative real-time PCR analyses for gata3 expression on crude lysates of the unamputated, 1 dpa, and 3 dpa caudal fins. Bars represent ± SEM.(I) Experimental scheme for caudal fin outgrowth assay. (I′) A 4 dpa caudal fin. One lobe is injected with control morpholino (Ctrl-MO) and the other with gata3 antisense morpholino (AS-MO) at 2 dpa. A1, Area regenerated between 0–2 dpa in the control lobe before injection. A2, Area regenerated between 0–2 dpa in the AS-MO lobe before injection. A3, Area regenerated between 2–4 dpa after Ctrl-MO injection. A4, Area regenerated between 2–4 dpa after AS-MO injection.(J) Quantification graph for the relative regenerative outgrowth between 2 and 4 dpa compared to uninjected regenerates. A_uninj, Area regenerated between 2–4 dpa without injection.(K) BrdU IHC on control MO-injected lobe. Parenthesis indicate the blastema. Inset is a high magnification for the blastema of one fin ray. Bars represent ± SEM.(L) BrdU IHC on gata3 MO-injected lobe. Parenthesis indicate the blastema. Inset is a high magnification for the blastema of one fin ray.(M) Quantification graph for the relative number of BrdU-positive cells in ctrl-MO and AS-MO-injected fins. Scale bars 100 μm; data are represented as mean ± SEM.(N) BrdU-Gata3 double immunostaining shown on DIC image of the fin in (K). (N′) Gata3 staining alone is shown.(O) BrdU-Gata3 double immunostaining shown on DIC image of the fin in (L). (O′) Gata3 staining alone is shown. n = 3 fish for (A–B2), 4 for every set for (C–G), 3 for (H), 6 for (I–J), 4 for (K–M), and 4 for (N–O′).

Expression Data

Gene:	gata3
Fish:	WT
Condition:	physical alteration: anatomical structure
Anatomical Terms:	caudal fin blastema caudal fin regeneration epithelium heart regenerating tissue
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO4-gata3
Condition:	physical alteration: anatomical structure
Knockdown Reagent:	MO4-gata3
Observed In:	fin regeneration regenerating fin cell population proliferation
Stage:	Adult

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 23(6), Kizil, C., Kyritsis, N., Dudczig, S., Kroehne, V., Freudenreich, D., Kaslin, J., and Brand, M., Regenerative Neurogenesis from Neural Progenitor Cells Requires Injury-Induced Expression of Gata3, 1230-1237, Copyright (2012) with permission from Elsevier. Full text @ Dev. Cell
