ZFIN ID: ZDB-FIG-100831-6
Chi et al., 2010 - Cardiac conduction is required to preserve cardiac chamber morphology. Proceedings of the National Academy of Sciences of the United States of America   107(33):14662-14667 Full text @ Proc. Natl. Acad. Sci. USA
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Anatomical Term:
Stage: Pec-fin
PHENOTYPE:
Fish:
Observed In:
Stage: Pec-fin

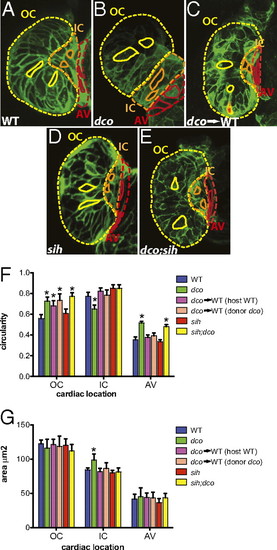

Fig. 3 Cardiac conduction, independent of hemodynamic flow or cardiac contraction, is required for cardiomyocyte morphogenesis. (A–E) Confocal images of 60 hpf embryos carrying the Tg(cmlc2:ras-eGFP)s883 reporter and (A) WT at the dco locus (WT), (B) dcos226 homozygous mutant (dco), (C) WT with dcos226 mutant cardiomyocytes carrying the Tg(cmlc2:dsRed)s879 reporter in the ventricle (dco → WT), (D) sih homozygous mutant (sih), or (E) dco;sih double homozygous mutant (dco;sih). Outer curvature (OC), inner curvature (IC), and atrioventricular canal (AV) are outlined in yellow, orange, and red dashed lines, respectively. Representative cardiomyocyte shapes for each area are outlined with solid lines. Bar graphs represent (F) cell morphology/circularity and (G) surface area measurements of Tg(cmlc2:ras-eGFP)s883 cardiomyocytes at 60 hpf from the outer and inner curvatures of the ventricle as well as the AV canal. Bar height indicates mean for a dataset; error bars indicate SE. *Statistically significant differences compared with WT (P < 0.001). Defects in electrical conduction result in aberrant cardiomyocyte morphogenesis.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
EGFP gja3s226/s226; s883Tg standard conditions Pec-fin cardiac muscle cell plasma membrane IFL
gja3s226/s226; tnnt2ab109/b109; s883Tg standard conditions Pec-fin cardiac muscle cell plasma membrane IFL
s883Tg standard conditions Pec-fin cardiac muscle cell plasma membrane IFL
tnnt2ab109/b109; s883Tg standard conditions Pec-fin cardiac muscle cell plasma membrane IFL
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
gja3s226/s226; s883Tg standard conditions Pec-fin cardiac muscle cell malformed, abnormal
Pec-fin cardiac muscle tissue morphogenesis process quality, abnormal
gja3s226/s226; tnnt2ab109/b109; s883Tg standard conditions Pec-fin cardiac muscle cell malformed, abnormal
Pec-fin cardiac muscle tissue morphogenesis process quality, abnormal
