FIGURE SUMMARY
Title

Cell-Fibronectin Interactions Propel Vertebrate Trunk Elongation via Tissue Mechanics

Authors
Dray, N., Lawton, A., Nandi, A., Jülich, D., Emonet, T., and Holley, S.A.
Source
Full text @ Curr. Biol.

Axis Elongation Defects after Loss of Both itgα5 and itgαV (A-D) Wild-type (WT) (A and B) and truncated (C and D) itgα5mo;αVmo embryos at the end of trunk elongation; i.e., 16-somite-stage embryos (A and C) and 24 hr postfertilization (hpf) (B and D). At the 16-somite stage, we find that distance from the otic vesicle to the anterior of the head in itgα5mo;αVmo embryos (n = 30) is 74% (SD = 8%; p < 0.05) of that in WT embryos (n = 20) and that the distance from the otic vesicle to the tip of the tail is 71% of that in WT embryos (SD = 7%; p < 0.05). (E–L) In situ hybridization of tail bud gene expression in 13-somite-stage embryos. (M and N) FN immunolocalization in 16-somite-stage WT (M) (n = 10) and itgα5mo;αVmo embryos (N) (n = 17). Note the reduction in FN matrix as well as the prominent medial-lateral fiber orientation in (N). Scale bars are 50 μm. In (A–D), anterior is the left. In (E–N), anterior is up. See also Figure S1./p>

EXPRESSION / LABELING:
Genes:
Fish:
Knockdown Reagents:
Anatomical Terms:
Stage: 10-13 somites
PHENOTYPE:
Fish:
Knockdown Reagents:
Observed In:
Stage Range: 14-19 somites to Prim-5

Quantitative Analysis of Cell Motion in the Tail Bud (A and B) Tail bud cell tracks were divided into four regions: ADM (magenta), DM (red), PZ (green), and PSM (cyan). (A) is a dorsal view and (B) is a lateral view of 12- to 14–somite-stage embryos. Anterior is the left. See also Movie S1. (C and D) Mean track speeds. (E and F) The means of the coefficient of variation (C.V.). (G and H) Track straightness, which is equal to length divided by displacement. (I and J) The vector displacement map averages cell motion in sectors. The heat map indicates mean speed, warmer colors indicate higher speeds, and arrows signify averaged 3D velocity vectors. (K and L) The top 10% of PZ tracks exhibiting the largest displacement in each direction (dorsal to ventral [green], medial to lateral [yellow], posterior to anterior [red], and ventral to dorsal [blue]). (M and N) 3D FEM was used to measure the vorticity within the cell flow. Arrows slanting rightward indicate a dorsal to ventral curvature. The ADM is omitted from the vector map and FEM to better visualize motion in the PSM. In (C–H), data are plotted for three WT and four itgα5mo;αVmo embryos. Data sets averaged 163 min in length. p values were calculated via ANOVA with additional validation by permutation tests. See also Figure S2.

itgα5 Function in the Paraxial Mesoderm Is Sufficient to Rescue Body Elongation in itgα5mo;αVmo Embryos (A) In WT embryos, cells on the surface of the paraxial mesoderm display low levels of blebbing (asterisks), as revealed by phalloidin staining. (B) In itgα5mo;αVmo embryos, cells along the medial surface of the paraxial mesoderm exhibit a dramatic increase in blebbing (brackets). See also Movie S2. (C–E) Phalloidin staining of the cell cortices shows the close alignment of the notochord and paraxial mesoderm in WT embryos (C) (n = 16), the loss of this intertissue adhesion and alignment in itgα5mo;αVmo embryos (D) (n = 31), and the rescue of intertissue adhesion and organization in Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos (E) (n = 10). (F and G) Body elongation is rescued in Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos at 14 hpf (F) and 24 hpf (G). At the 16-somite stage, the trunks of transgenic rescue embryos (n = 40) are 88% of that in WT embryos (SD = 4%; p < 0.05), and the heads are 83% of that in WT embryos (SD = 5%; p < 0.05). RFP fluorescence shows Itgα5 expression in the paraxial mesoderm. (H) Tg(tbx6l:itgα5-RFP) rescues FN matrix assembly and fiber orientation in itgα5mo;αVmo embryos (n = 7). Anterior is left. Note that panels (C–E) and (H) are composites of anterior and posterior images. Scale bars represent 50 µm. See also Figure S3.

EXPRESSION / LABELING:
Gene:
Fish:
Knockdown Reagents:
Anatomical Term:
Stage Range: 10-13 somites to Prim-5
PHENOTYPE:
Fish:
Knockdown Reagents:
Observed In:
Stage: 14-19 somites

Analyses of Convergence Extension, Apoptosis, and Cell Proliferation in itgα5mo;αVmo Embryos, Related to Figure 1

(A) Wild-type, fn1mo;fn1bmo, itgα5mo;αVmo and Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos were fixed at the tailbud stage and in situ hybridization for her1 was performed. We then measured the medial-lateral width of the tailbud at the level of the posterior tip of the notochord. The fn1mo;fn1bmo embryos (n=30) exhibited a 17.5% increase in width of the tailbud (unpaired t-test; p-value <0.05) which is consistent with previous observations [1]. In contrast, neither itgα5mo;αVmo (n=37) nor Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos (n=24) displayed a change in tailbud width relative to wild type (n=55) (p-value >0.05). Error bars show standard error. The fn1 and fn1b morpholinos have been previously described [2].
(B) Cell death was assayed in wild-type, itgα5mo;αVmo and Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos. We fixed embryos at the 13-somite stage and assayed apoptosis via TUNEL. Briefly, embryos were fixed overnight in 4% PFA in PBS at 4°C and stored in 100% methanol at 20°C. Embryos were rehydrated and permeabilized in 100% acetone at 20°C for 20 min followed by several washes in 0.5% Triton X-100 and 0.1% sodium citrate in PBS and then treated for TUNEL assay using the in situ Cell Death Detection Kit, POD (Roche, Basel, Switzerland) according to the manufacture’s instructions. There was no clear difference in apoptosis in itgα5mo;αVmo embryos (n=12) nor in Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos (n=10) compared to wild type (n=12).
(C) Cell proliferation was assayed in wild-type, itgα5mo;αVmo and Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos. We fixed embryos at the 13-somites stage and assayed for cell proliferation via immunohistochemistry for Phosphorylated Histone H3 (PHH3) as previously described [3]. Compared to wild-type (n=5), itgα5mo;αVmo embryos (n=5) exhibited a 36% decrease in cell proliferation (unpaired t-test, p-value <0.05). Proliferation in Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos (n=5) was no different than in itgα5mo;αVmo embryos (p>0.05). Scale bars equal 200 microns.

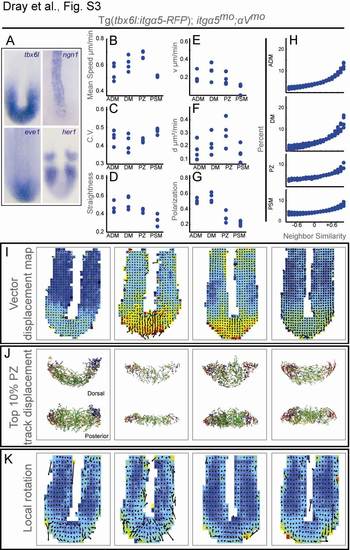

Detailed Characterization of Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo Embryos, Related to Figure 4

(A) In situ hybridization of tailbud gene expression was performed on 13-somites stage embryos. Expression of tbx6l (n=23), eve1 (n=15), neurogenin 1 (n=10) and her1 (n=37) and appear as in wild type.
Quantitative analysis of tailbud cell motion in four Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos.
(B) Mean track speeds.
(C) The means of the coefficient of variation (C.V.).
(D) Track straightness: length divided by displacement. In B-D, p-values for comparison to wild-type data were calculated via ANOVA with additional validation by permutation tests.
Characterizing relative cell motion: directed and diffusive movement, global order and local order.
(E and F) A Bayesian analysis of the MSD determined that cell motion in the tailbud is best modeled using velocity magnitude (E) and diffusion coefficient (F) as parameters [6].
(G) Polarization (φ) measures global order within each domain of the tailbud.
(H) Neighbor similarity quantifies the local order of cell motion. The angles between all adjacent instantaneous velocity vectors for each timepoint are binned such that 1 represents parallel motion, -1 anti-parallel motion, 0 orthogonal motion and the intervening deciles denoting intermediate angles. The percentage of angles in each bin for the four Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos are plotted to give the angle distribution. (E-H) P-values for comparison to the wild-type data were calculated via paired and unpaired t-tests.
Patterns of tailbud cell flow and local curvature of cell motion in Tg(tbx6l:itgα5-RFP);itgα5mo;αVmo embryos.
(I) The vector displacement map averages cell motion in sectors. The heat map indicates mean speed with warmer colors indicating higher speeds and arrows signify averaged 3-D velocity vectors.
(J) The top 10% of PZ tracks exhibiting the largest displacement in each direction (dorsal to ventral [green], medial to lateral [yellow], posterior to anterior [red] and ventral to dorsal [blue]).
(K) 3-D Finite Element Method was used to measure the vorticity within the cell flow. Arrows slanting rightward indicate a dorsal to ventral curvature. The ADM is omitted from the vector map and FEM to better visualize motion in the PSM.
