Figure 4

ID

ZDB-IMAGE-250110-97

Genes

Publication

Chen et al., 2024 - Deletion of ddx4 Ovary-Specific Transcript Causes Dysfunction of Meiosis and Derepress of DNA Transposons in Zebrafish Ovaries

All Figures

Figures for Chen et al., 2024


Figure Caption

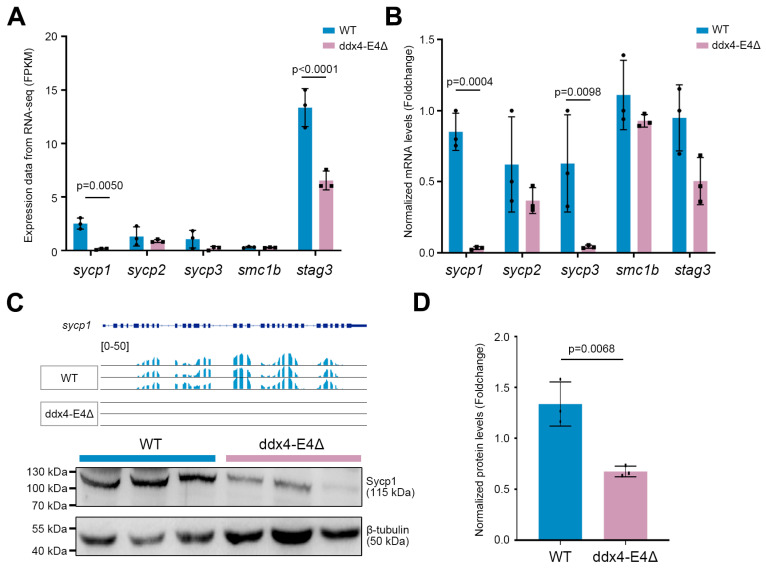

Figure 4

ddx4-L knockout leads to significant downregulation of sycp1 at mRNA and protein levels. (A) Expression levels of several meiosis-related genes in WT and ddx4-E4Δ ovaries based on the RNA-seq data. The FPKM values are shown. n = 3. (B) qPCR validation of the mRNA levels of meiosis-related genes in WT and ddx4-E4Δ ovaries at 6 mpf. n = 3. (C) Detection of Sycp1 protein levels in WT and ddx4-E4Δ ovaries at 6 mpf by Western blot assay. RNA-seq tracks of sycp1 gene in WT and ddx4-E4Δ ovaries are shown in the top panel. Original western blot images are shown in Figure S1A. (D) Quantitative analysis of the bands in (C) shows the changes in Sycp1 protein levels in ddx4-E4Δ ovaries. n = 3.

Figure Data

Expression / Labeling details

Phenotype details
