Fig. 3

ID

ZDB-IMAGE-241015-13

Genes

Publication

Ling et al., 2024 - Establishment of a Diamond-Blackfan anemia like model in zebrafish

All Figures

Figures for Ling et al., 2024


Figure Caption

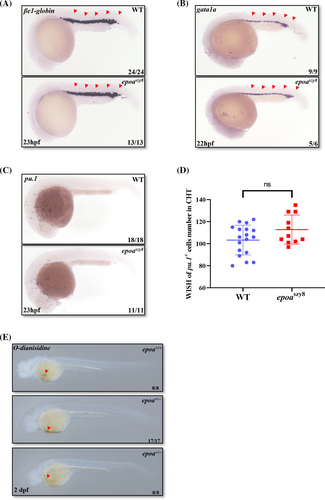

Fig. 3 No alterations in primitive hematopoietic lineages in epoaszy8. (A) βe1-globin WISH (indicated by red triangular arrowheads) identified erythroid progenitor cells at 23-hpf in epoaszy8 compared with WT (Fisher's exact test, n > 10, ns: no significance). (B) gata1a WISH (indicated by red triangular arrowheads) identified erythroid progenitor cells at 22-hpf in epoaszy8 compared with WT (Fisher's exact test, n ≥ 6, ns: no significance). (C and D) pu.1 WISH (C) identified primitive myeloid cells at 23 hpf in epoaszy8 compared with WT (Student's t-test, n > 10, mean ± SD, ns: no significance). (E) O-dianisidine staining (indicated by red triangular arrowheads) identified hemoglobin at 2 dpf.

Figure Data

Expression / Labeling details

Phenotype details
