Fig. 6

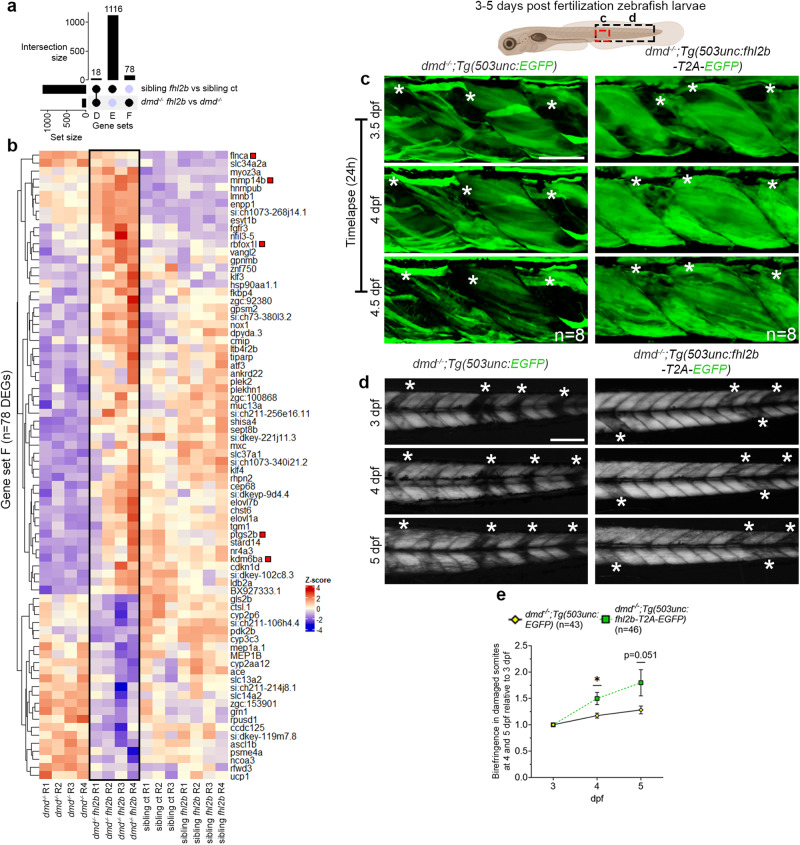

Fig. 6 fhl2b overexpression leads to upregulation of regenerative markers in dmd^−/− zebrafish larvae.
