Fig. 10

ID

ZDB-IMAGE-230807-10

Genes

gsx1
gsx2

Publication

Coltogirone et al., 2022 - Gsx2, but not Gsx1, is necessary for early forebrain patterning and long-term survival in zebrafish

All Figures

Figures for Coltogirone et al., 2022


Figure Caption

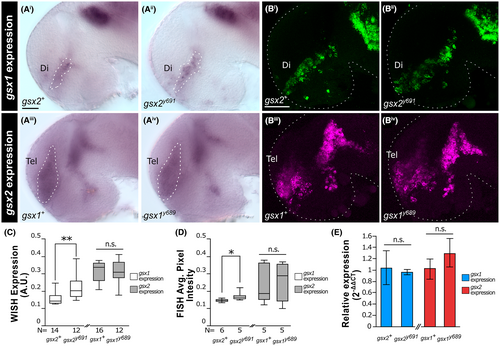

Fig. 10 gsx1 and gsx2 expression in gsx1 and gsx2 mutant zebrafish. (Aⁱ-A^iv) whole-mount in situ hybridization (WISH) images at 30 hpf showing gsx1 expression in wild-type and gsx2^y691 embryos (top) and gsx2 expression in wild-type and gsx1^y689 embryos. Images are ×20 compound scope images with embryos mounted under cover glass, eyes dissected, and anterior facing left. (Bⁱ-B^iv) FISH images at 30 hpf. Images are ×20 confocal images with embryos mounted under cover glass, eyes dissected, and anterior facing left. (C) FIJI-ImageJ quantification of images in (Aⁱ-A^iv). (D) FIJI-ImageJ quantification of images in (Bⁱ-B^iv). Sample sizes for all FIJI-ImageJ analyses are indicated. Asterisks indicate significant differences and correspond with P-values; *P < .05, **P < .01, ***P < .005, ****P < .001. (E) RT-qPCR quantification of gsx1 and gsx2 expression in 30 hpf embryos across genotypes. The 2^−∆∆Ct method was used to calculate relative expression to the reference gene ef1a. Data are representative of two biological replicates (parent groups)

Figure Data

Expression / Labeling details

Phenotype details
