FIGURE 7

ID

ZDB-IMAGE-220921-67

Genes

Publication

Feng et al., 2022 - The Polycomb group gene rnf2 is essential for central and enteric neural system development in zebrafish

All Figures

Figures for Feng et al., 2022


Figure Caption

FIGURE 7

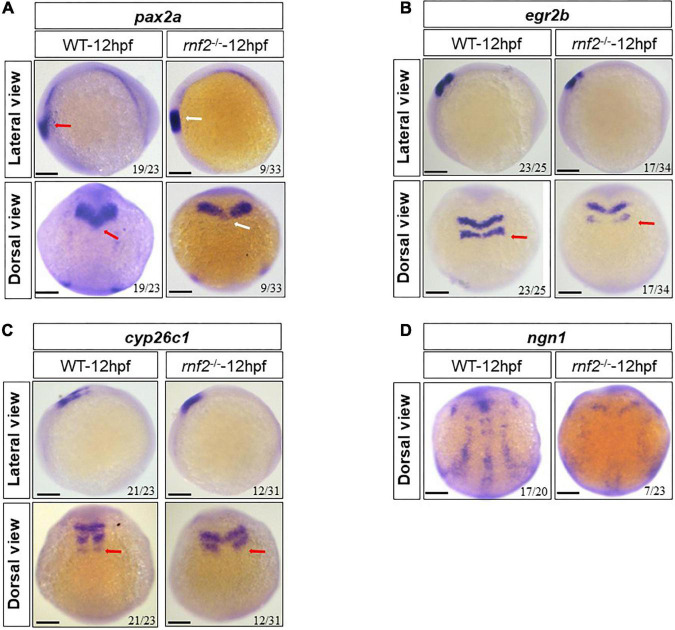

The effect of ring1b deficiency on the early development of brain in zebrafish embryos. (A) The expression of pax2a in rnf2^–/– and WT embryos at 12 hpf. Upper: lateral view, bottom: dorsal view. The red and white arrows, respectively, showing the different expression of pax2a in WT and rnf2^–/– embryos at 12 hpf. (B) The expression of egr2b in rnf2^–/– and WT embryos at 12 hpf. Upper: lateral view, bottom: dorsal view. The red arrows showing the different expression of egr2b in WT and rnf2^–/– embryos at 12 hpf. (C) The expression of cyp26c1 in rnf2^–/– and WT embryos at 12 hpf. Upper: lateral view, bottom: dorsal view. The red arrows showing the different expression of cyp26c1 in WT and rnf2^–/– embryos at 12 hpf. (D) The expression of ngn1 in rnf2^–/– and WT embryos at 12 hpf. The experiments were repeated at least three times. Scale bar = 0.1 mm.
