Fig. 6

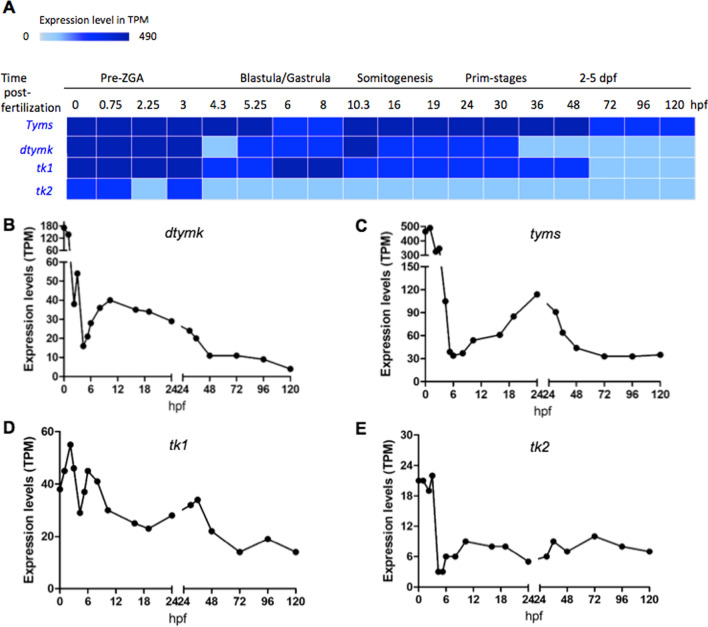

mRNA expression profiles of selected enzymes involved in dTTP synthesis at different zebrafish developmental stages. A mRNA expression heatmap. dtymk, thymidylate kinase; tyms, thymidylate synthesis; tk1, thymidine kinase 1; tk2, thymidine kinase 2. Plots of mRNA levels of dtymk (B), tyms (C), tk1 (D) and tk2 (E). TPM, transcript per million. Data are shown as average expression (mean TPM) and retrieved from Expression atlas ? baseline expression of transcriptional profiling of zebrafish developmental stages (https://www.ebi.ac.uk/gxa/experiments/E-ERAD-475/Result)
