Fig. S4

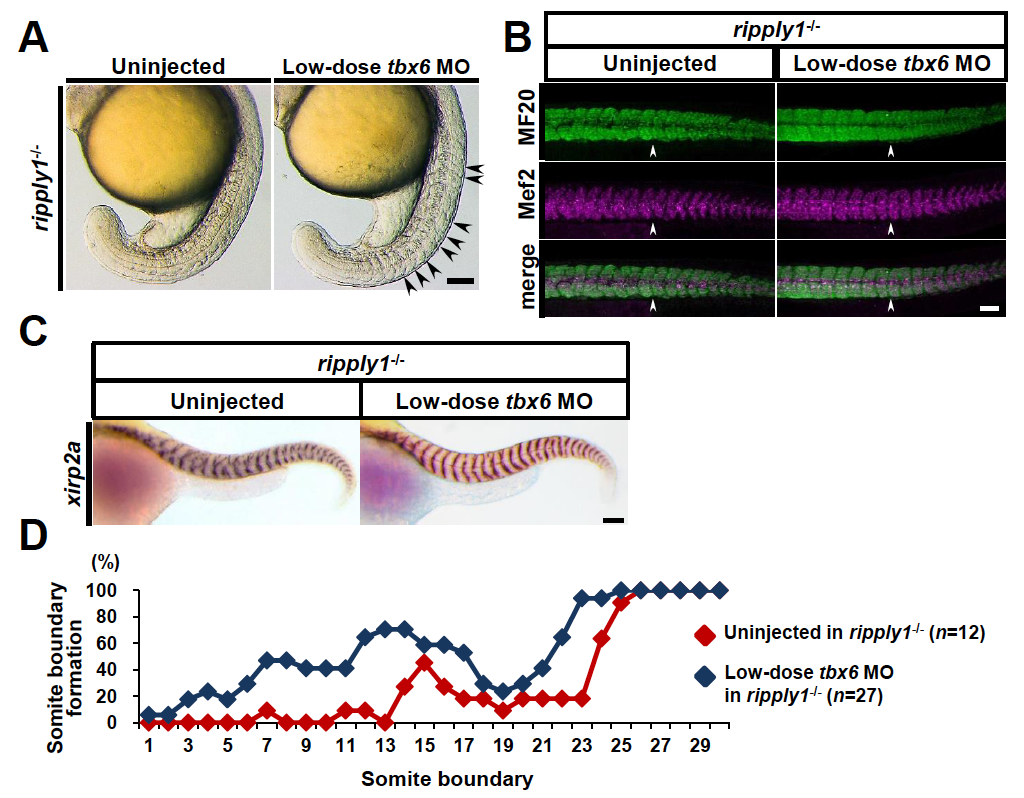

Somite segmentation defects in ripply1 homozygous embryos were rescued by partial knockdown of tbx6. (A) Lateral views of uninjectedand low-dose tbx6 MO-injected ripply1-/- embryos at the 20-somite stage. tbx6MO was injected at a low dose (concentration of 0.5 mg/ml) into blastomeresof fertilized embryos obtained by intercross between ripply1homozygous fish. (B) Immunohistochemistry of the myotomes of uninjectedand low-dose tbx6MO-injected ripply1-/-embryos at 36 hpfusing MF20 and anti-Mef2c antibodies. The arrowhead shows the posterior end of the yolk extension. Anterior is to the left. (C) Representative images of uninjectedembryos and low-dose tbx6MO-injected ripply1-/-embryos at 36 hpf. The somite boundary was visualized by in situstaining with xirp2a/cb1045 antisense probe. (D) Distribution of somite boundary formation in uninjectedripply1-/-and tbx6 MO-injected ripply1-/-embryos. In the low-dose tbx6MO-injected embryos, the stained embryos showing recovery of the somite boundary were examined. See Materials and Methods for the details of this analysis. Scale bars in A, B, and C are 100 mm.
