Hoxb1b^−/−;pbx4^−/− double mutants revert to the r1-like ground state.

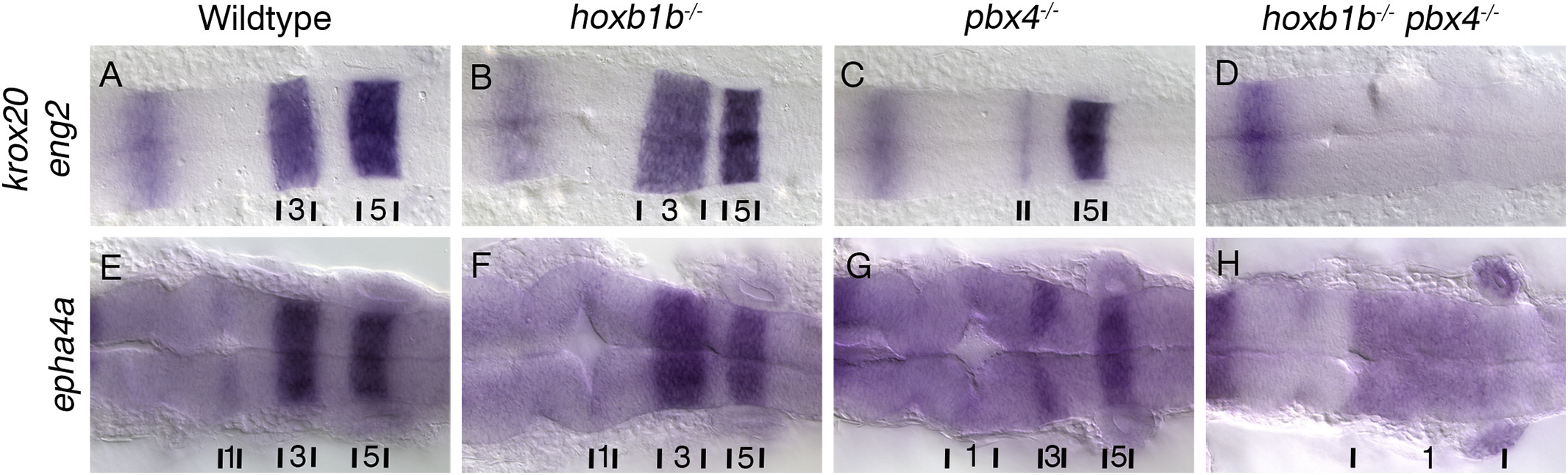

Eng2 expression in the midbrain-hindbrain boundary is observed in all embryos (A-D), however krox20 and epha4a expression are altered. As previously observed, hoxb1b^−/− mutants have an expanded r3 domain and a reduced r4 domain (6/6 embryos) (B, F). In pbx4^−/− mutants r3 is drastically reduced (12/12 embryos)(C,G), and in hoxb1b^−/−;pbx4^−/− double mutants all krox20 expression in r3 and r5 is lost (3/3 embryos)(D), while the r1 domain of epha4a expression is expanded posteriorly throughout the hindbrain (3/3 embryos)(H). All embryos have been genotyped for pbx4^b557 and hoxb1b^ua1006. All images are dorsal views, anterior to the left, 22hpf.
