ZFIN Image: Gou et al., 2018, Fig. 1


Figure Caption

Fig. 1

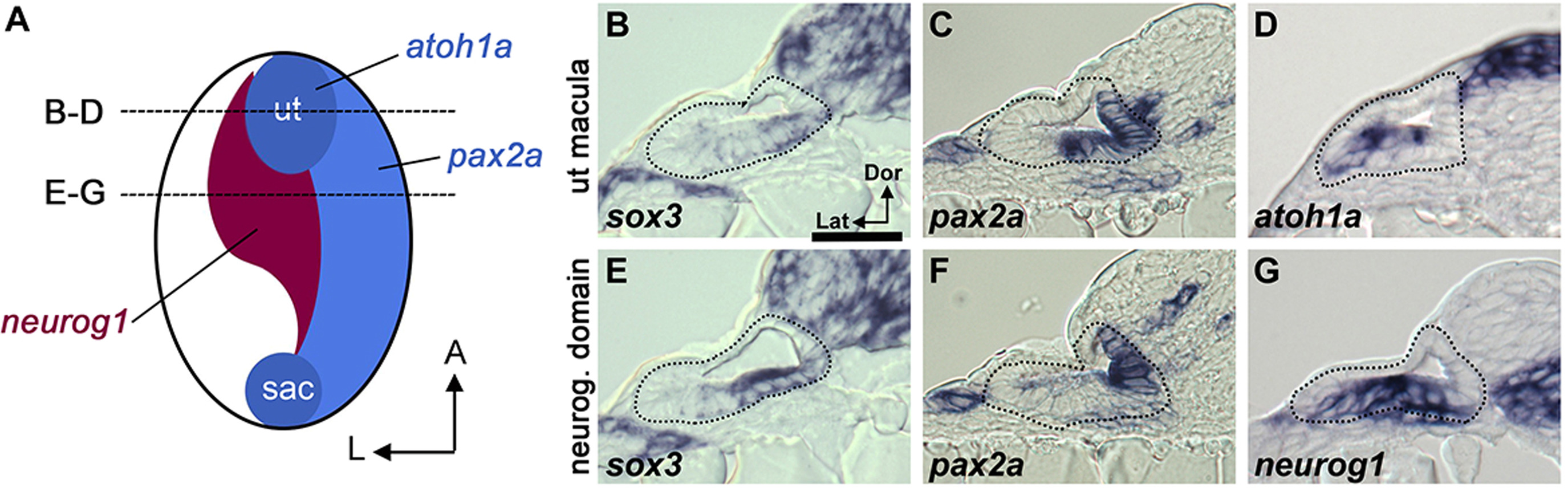

Expression ofsox3in the otic vesicle overlaps sensory and neurogenic domains. (A) Schematic depiction of the floor of the otic vesicle (anterior up, lateral to the left) showing expression domains of atoh1a in the utricular (ut) and saccular (sac) maculae, neurog1 in the neurogenic domain, and the medial marker pax2a. Dashed lines indicate the section planes shown in (B–D) and (E–G). (B–D) Expression of sox3 (B), pax2a (C) and atoh1a (D) in cross sections passing through the utricular macula at 24 hpf. (E–G) Expression of sox3 (E), pax2a (F) and neurog1 (G) in cross sections passing through the widest part of the neurogenic domain at 24 hpf. Otic vesicle borders are outlined in B–G.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 435(1), Gou, Y., Vemaraju, S., Sweet, E.M., Kwon, H.J., Riley, B.B., sox2 and sox3 play unique roles in development of hair cells and neurons in the zebrafish inner ear, 73-83, Copyright (2018) with permission from Elsevier. Full text @ Dev. Biol.
