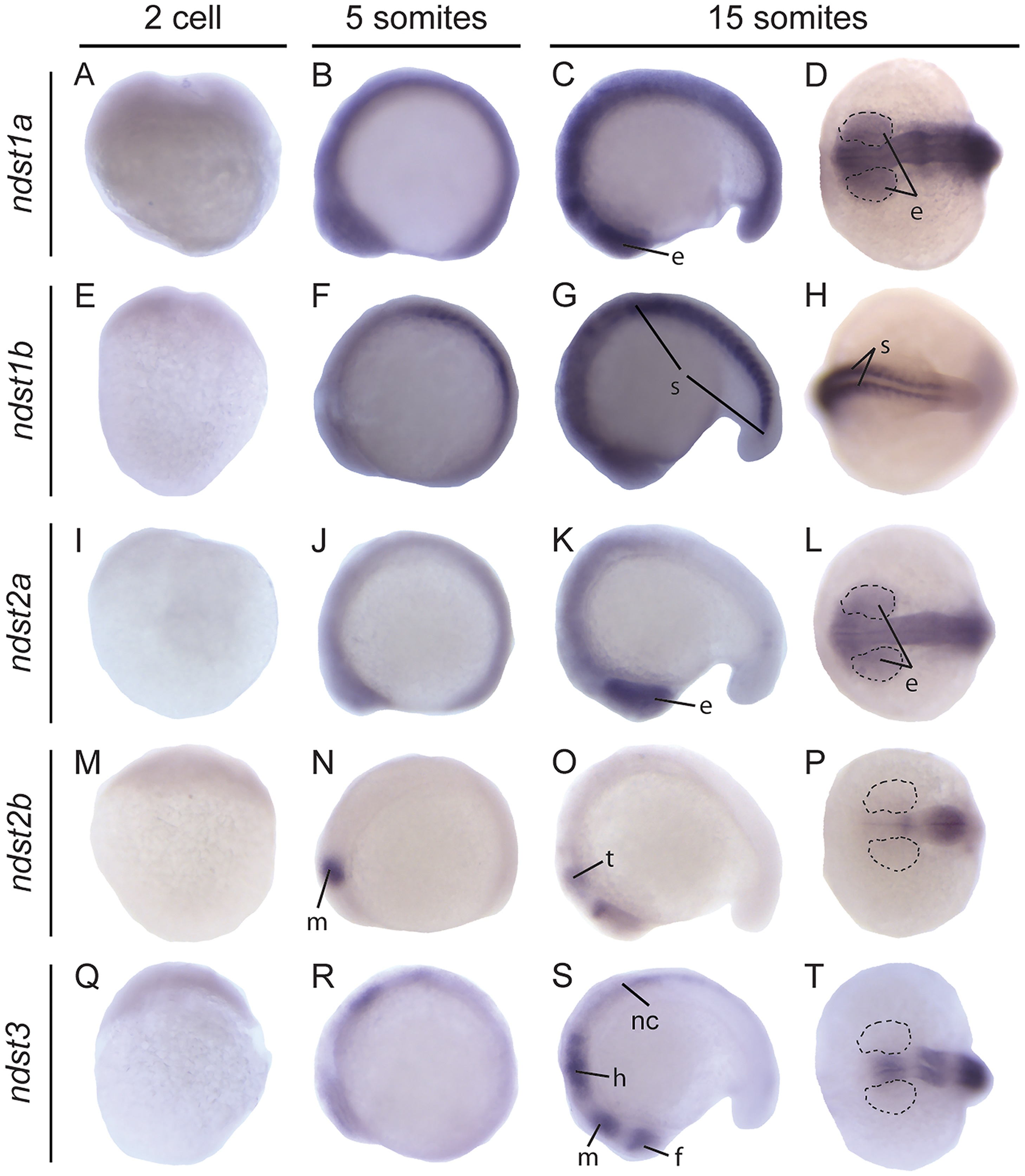

Expression of zebrafish ndst genes at early developmental stages.
Lateral view of embryos at 2 cell, 5 somite and lateral and dorsal view of embryo head (D, L, P, T) or tail at 15 somite stage, respectively. Expression of ndst1a: A-D; ndst1b: E-H; ndst2a: I-L; ndst2b: M-P; ndst3: Q-T. Areas of the developing eye are marked with dotted lines. Abbreviations used: e, eye; f, forebrain; h, hindbrain; m, midbrain; nc, neural crest; s, somites; t, tectum.
