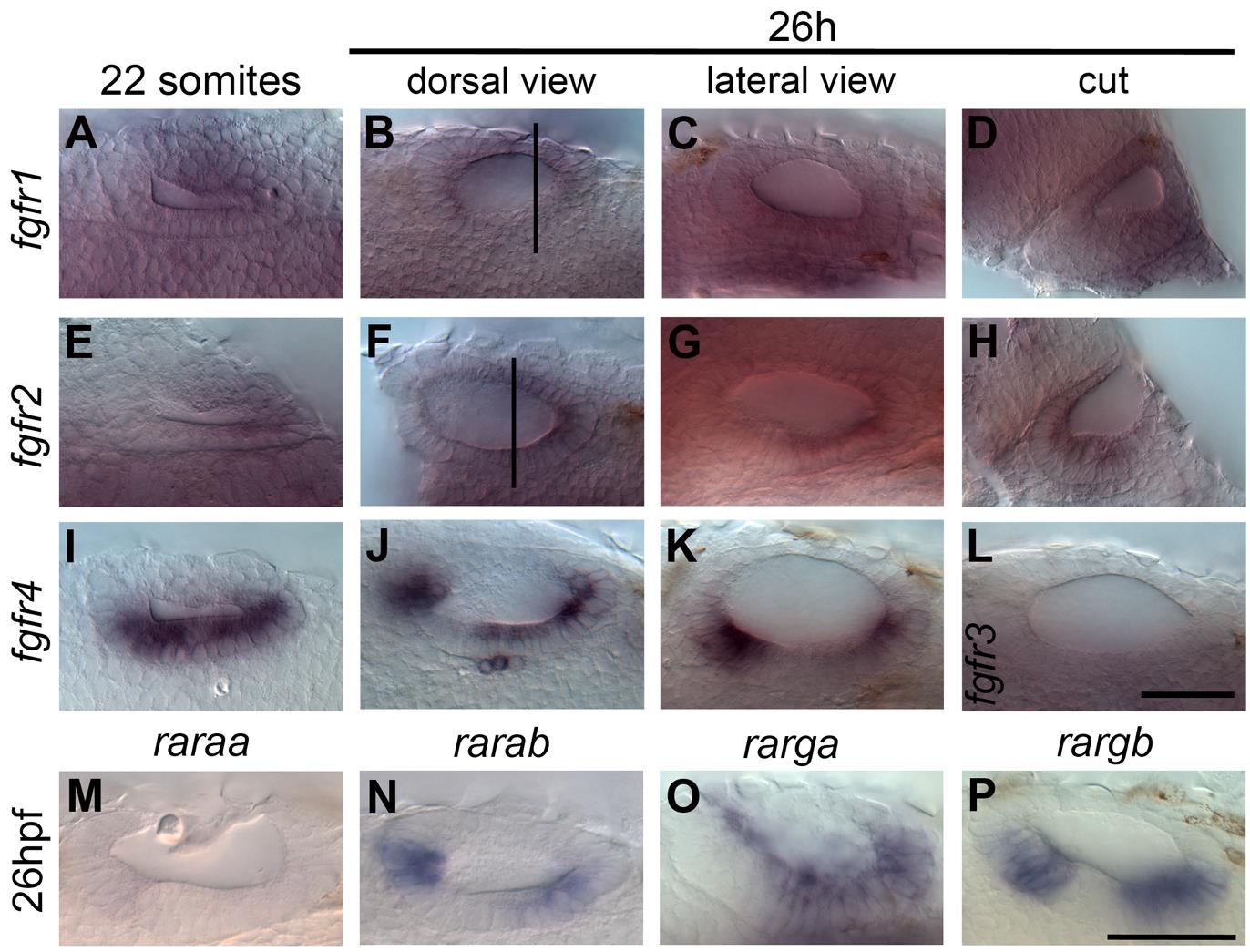

Fig. S1 Expression of Fgf and RA receptor genes in the zebrafish otic vesicle. (A–L) Expression of FGF receptor genes in the zebrafish OV at 22S and 26 hpf. (A–D) fgfr1a is expressed fairly ubiquitously, including in the OV. (E–H) fgfr2 is expressed in the posterior OV. (I–K) fgfr4 is expressed in the medial OV at 22S. By 26 hpf expression becomes more restricted towards the poles and no expression can be detected in the ventral OV floor. (L) fgfr3 is not expressed in the OV at 26 hpf. Vertical bars in B and F indicate position of section in D and H, respectively. (A,B,E,F,I,J) are dorsal views with anterior to the left. (C,G,K,L) are lateral views with anterior to the left; (D,H) are sections through the ear looking anteriorly. (M–P) Expression of RA receptor genes in the zebrafish OV at 26 hpf. (M) raraa is expressed very weakly in the anteroventral OV. (N) rarab is expressed in two patches in the OV. (O) rarga is expressed in most of the OV, but excluded from the anteroventral region, in a pattern very similar to that of tbx1. (P) rargb is expressed in two patches in the OV. (M,O,P) Lateral views; (N) dorsal view, anterior to the left. Scale bar: 50 µm.
