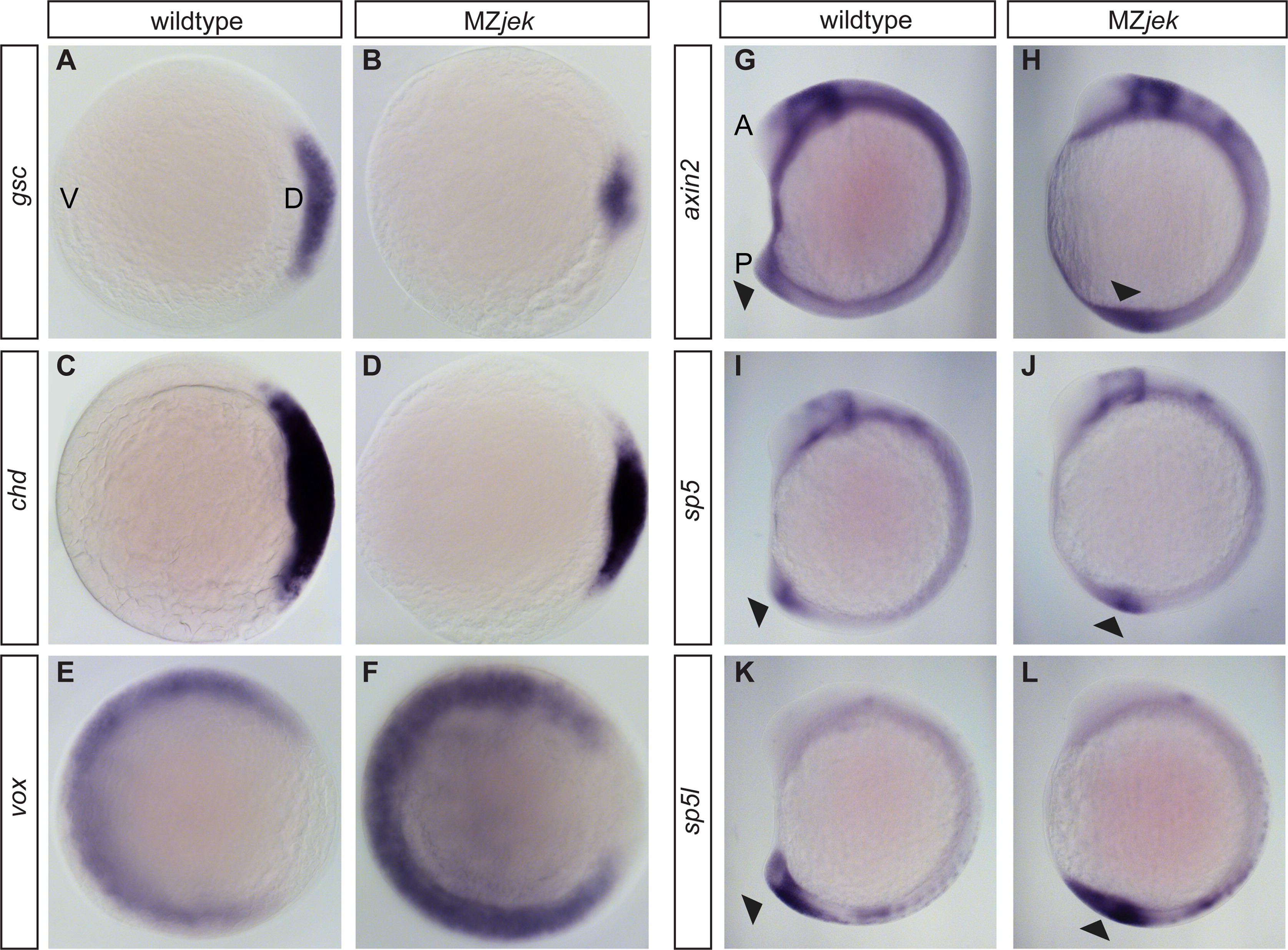

Fig. 6 Canonical Wnt signaling is upregulated in MZjek;. (A–F) Whole-mount in situ hybridization (WISH) for dorsal organizer genes goosecoid (A,B; gsc; N=26,23) and chordin (C,D; chd; N=20,21), and ventral gene vox (E,F; N=15,18) at shield stage. Dorsal (D) and Ventral (V) orientation indicated in panel A. Embryos are viewed from the animal pole with dorsal to the right. (G–L) WISH of axin2 (G,H; N=12,8), sp5 (I,J; N=18,11), and sp5l (K,L; N=9,8) at 12 SS. Gene expression appears to be most dramatically upregulated in the tailbud (arrowheads). Anterior (A) and Posterior (P) extents are as indicated in panel G.
