Figure 3. Nkd1 is insufficient to antagonize constitutively active β-catenin.

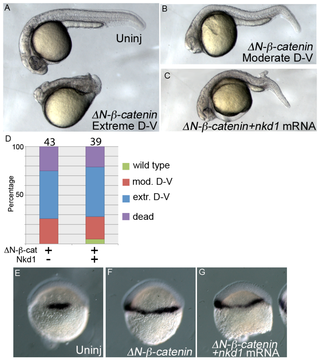

Overexpression of ΔN-β-catenin results in a spectrum of dorsal-ventral (D-V) phenotypes ranging from a severe phenotype (A), which shows dramatic reduction in both dorsal and ventral structures to a moderate phenotype (B), which have reduced dorsal and ventral structures. The addition of Nkd1 does not ameliorate the effect of &Delat;N-β-catenin. The distribution of phenotypes in ΔN-β-catenin and nkd1 injections is quantified in (D), with numbers above each column representing n values. Consistent with the 1 dpf phenotype, ΔN-β-catenin overexpression results in expansion of gsc expression (E, F), which is not reduced by the addition of Nkd1 (G) (uninj n=40; ΔN-β-catenin n=32; ΔN-β-catenin+nkd1 n=34).
