Fig. 4
- ID
- ZDB-IMAGE-130326-37
- Genes
- Publication
- Djiotsa et al., 2012 - Pax4 is not essential for beta-cell differentiation in zebrafish embryos but modulates alpha-cell generation by repressing arx gene expression
- All Figures
- Figures for Djiotsa et al., 2012
|
Figure Caption

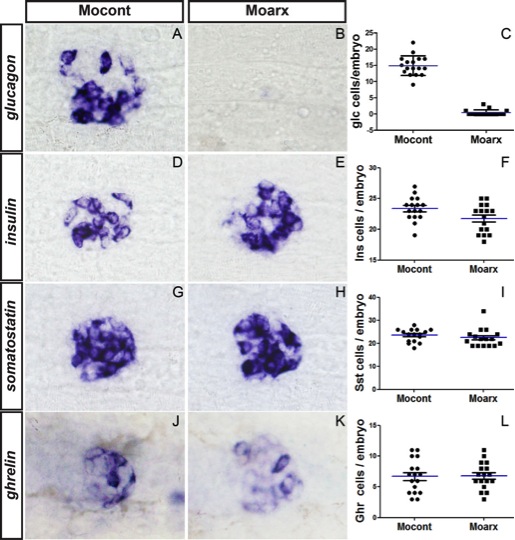

Fig. 4 arx is required for the differentiation of α-cells. (A - H) Ventral views of the pancreas area from embryos analyzed by WISH, anterior to the left. Pancreatic expression of insulin (A, B), somatostatin (C, D), ghrelin (E, F) and glucagon (G, H) in control morphants (A, C, E, F) and arx morphants (B, D, F, G) at 30n hpf. Quantifications (I - K) represent the number of positive cells per embryo for control morphants and arx morphants. Original magnification 400x.
