Fig. 4
|
Figure Caption

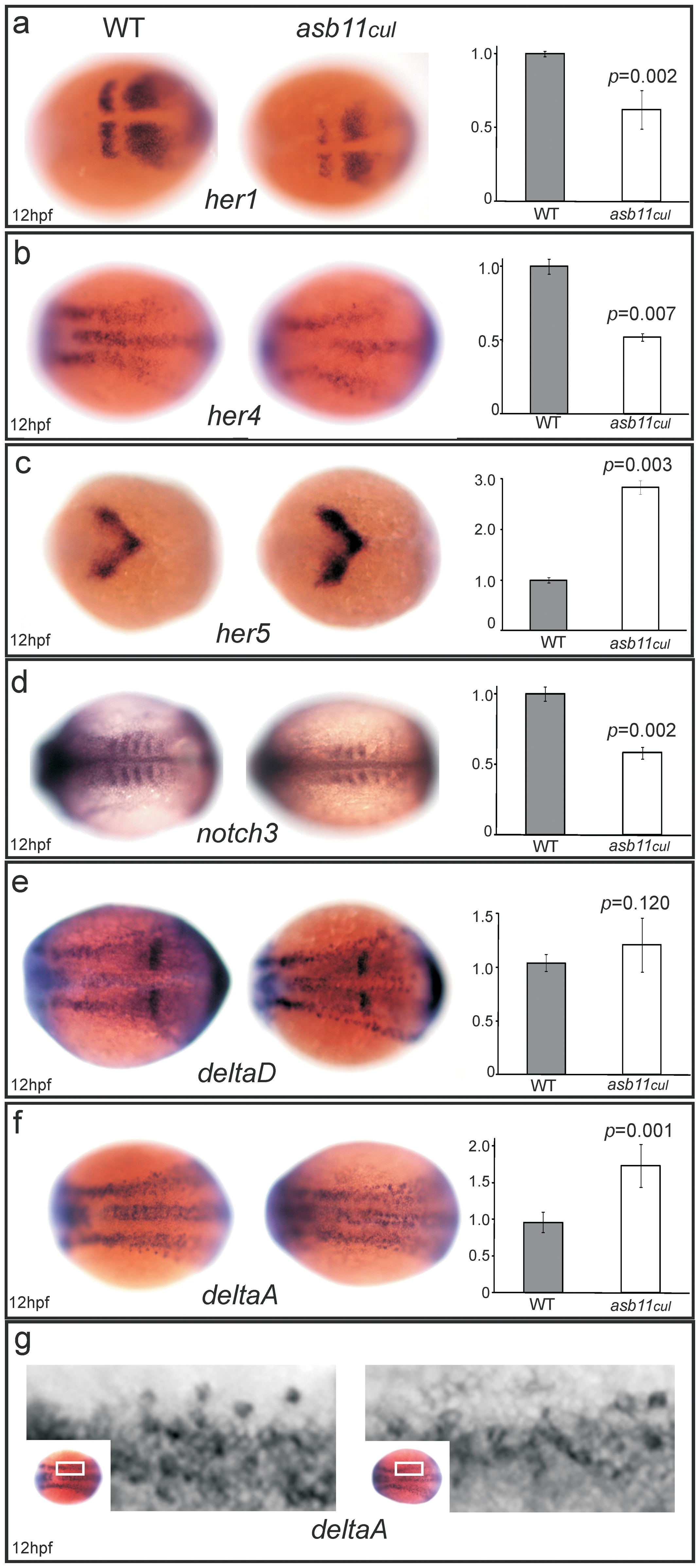

Fig. 4 asb11cul presented altered expression of Delta-Notch pathway components.
Wild type (left panel) and mutant (middle panel) embryos at 12 hpf were analyzed for WISH using probes against her1, A; her4, B; her5, C; notch3, D; deltaD, E; and deltaA, F. (G), Higher magnification shows detailed analysis of deltaA expression. (left) Graphs quantify the mRNA expression levels.
