Fig. 1

ID

ZDB-IMAGE-100616-1

Genes

Publication

McGrail et al., 2010 - Expression of the zebrafish CD133/prominin1 genes in cellular proliferation zones in the embryonic central nervous system and sensory organs

All Figures

Figures for McGrail et al., 2010


Figure Caption

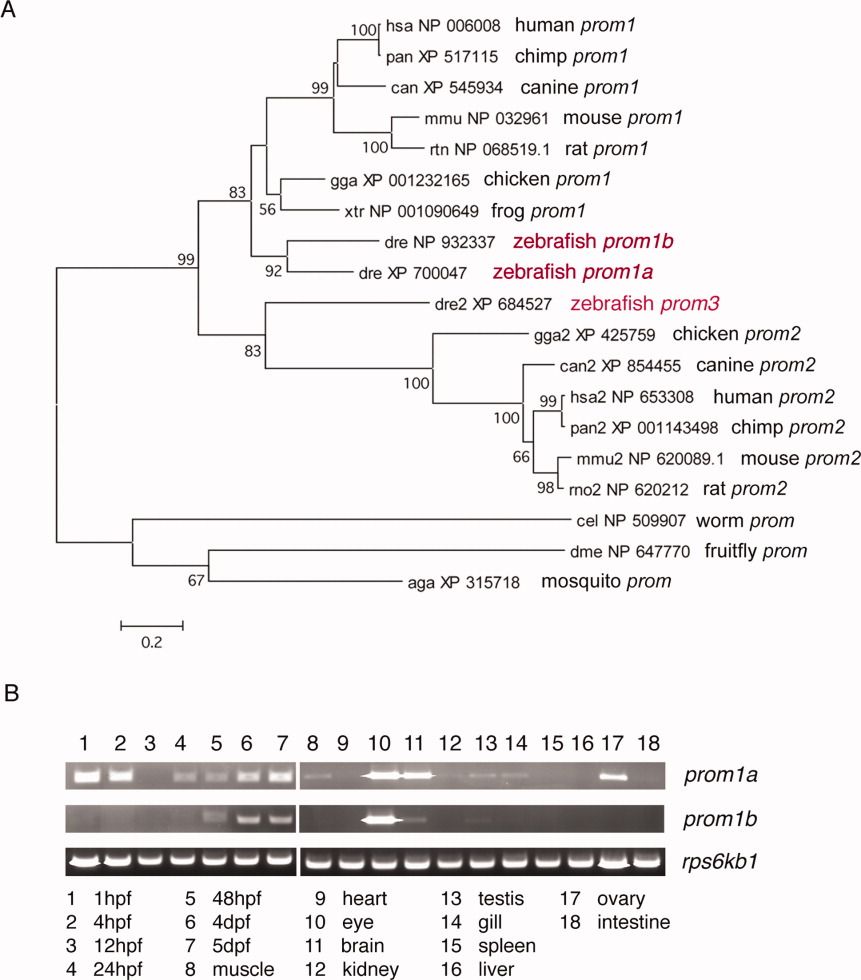

Fig. 1 Identification and expression analysis of zebrafish CD133/prominin1 paralogues prom1a and prom1b. A: Phylogenetic analysis of zebrafish prominin genes. aga, Anopheles gambiae; can, Canis familiaris; cel, Caenorhabditis elegans; dme, Drosophila melanogaster; dre, Danio rerio; gga, Gallus gallus; hsa, Homo sapiens; mus, Mus musculus; pan, Pan troglodytes; rno, rtn, Rattus norvegicus; xtr, Xenopus tropicalis. B: RT-PCR showing relative levels of prom1a and prom1b expression throughout development and in adult tissues. Control, expression of ribosomal protein S6 kinase b, polypeptide 1, (rps6kb1).

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
