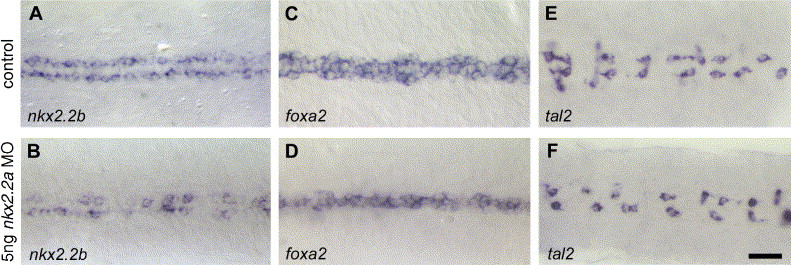

Fig. 7 Knock-down of nkx2.2a interferes with LFP formation. (A, B) nkx2.2a morpholino injected embryos show reduction of nkx2.2b expression to single cells (B; for details, see text). (C–F) The LFP marker foxa2 is almost completely repressed in the LFP after nkx2.2a morpholino knock-down (D), while expression of tal2 in p3 neuronal progenitor cells is not affected (F). All pictures are dorsal views with anterior to the left. Scale bar in panel F is 20 μM.
