Fig. S1
Figure Caption

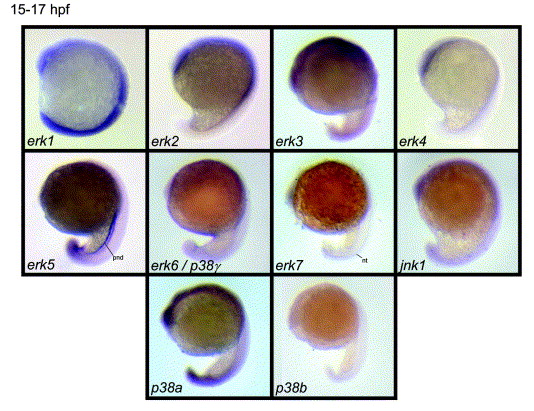

Fig. S1 Expression patterns obtained for the zebrafish mapk genes by in situ hybridization at 15–17 hpf. Lateral view, anterior to top, dorsal to right. Almost all mapk showed a ubiquitously expression, however expression for erk5 was already enriched in the pronephric ducts and erk7 expression was enriched in the notochord. p38b was not expressed at this stage. nt, notochord; pnd, pronephric ducts
