Fig. S1

ID

ZDB-IMAGE-070920-23

Genes

Publication

Hans et al., 2007 - Changes in retinoic acid signaling alter otic patterning

All Figures

Figures for Hans et al., 2007


Figure Caption

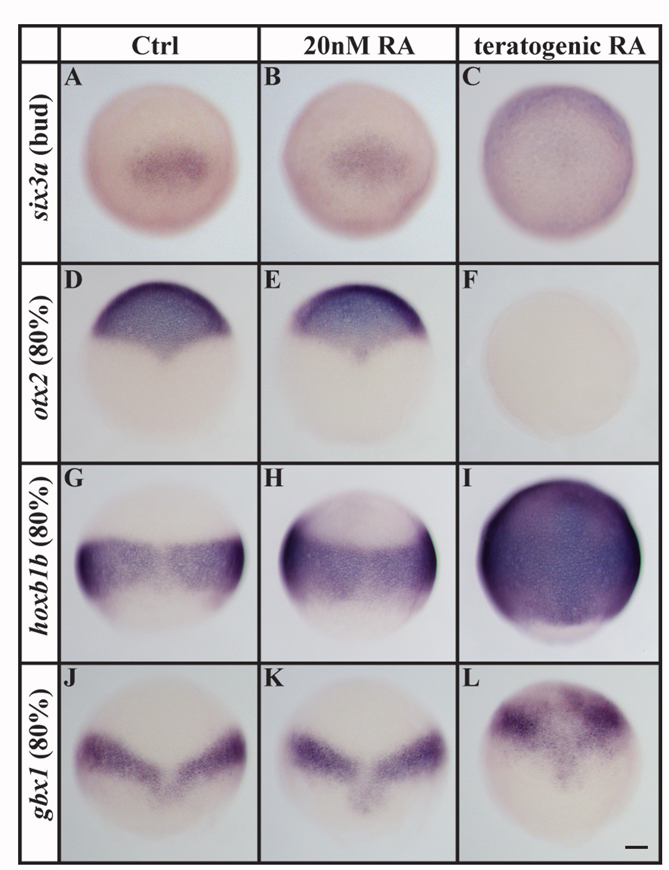

Fig. S1 Teratogenic doses (1 μM), but not 20 nM, RA alter the expression of early markers of anterioposterior axis specification. (A-F) In comparison to controls, expression of the anterior neural plate markers six3a (A-C) and otx2 (D-F) is unaffected by 20 nM RA but is completely abolished in the presence of a teratogenic dose. (G-L) By contrast, expression of the posterior neural plate markers hoxb1b (G-I) and gbx1 (J-L) is greatly expanded in embryos treated with a teratogenic dose of RA, whereas embryos treated with 20 nM RA show only a mild or no anterior expansion in comparison to control embryos. Scale bar: 90 μm.
