Fig. 4

ID
ZDB-IMAGE-070802-6
Genes
Source
Figures for Tessmar-Raible et al., 2007
Figure Caption

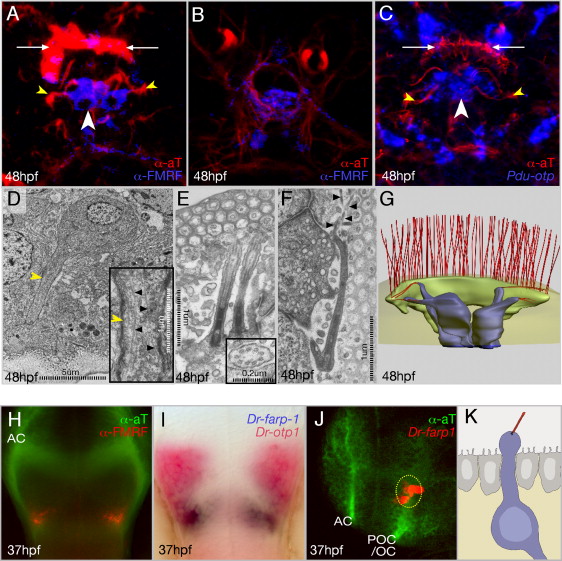

Fig. 4 RFamidergic Neurons in Platynereis and Zebrafish Medial Forebrains. (A–C) Immunostainings/in situ hybridizations of RFamidergic, otp+ cells in the apical plexus of Platynereis embryos. (A and B) Same embryo, different confocal projections, showing the RFamidergic plexus (B) below the contributing cells ([A], same level as [C]). (D–F) Transmission electromicrographs and derived reconstruction (G). (D) TEM view of a medial flask-shaped cell. Inset: enlargement of the dendrite rich in microtubules (black arrowheads). (E) Two cilia protruding from a medial flask-shaped cell to the subcuticular space. Inset: cilium in cross-section. (F) Cilium of the branching type; black arrowheads, ramifications extending underneath the cuticle. (H) zebrafish RFamidergic cells and (I and J) Dr-farp1 transcript in relation to Dr-otp1 (red in [I]) and the axon scaffold (green in [J]). (K) Forebrain CSF-contacting neuron (according to data from Leonhardt, 1980). AC, anterior commissure; POC/ OC, postoptic commissure/optic chiasm. Views: (A–F) apical, (A–C) ventral to the bottom; (G) ventroapical; (H and I) ventral, anterior to the top; (J) lateral, anterior left. White arrows: position of large multiciliated crescent cell as landmark for orientation, yellow arrowheads: microtubule-rich dendrites bearing cilia. Depth of confocal reconstructions: (A and C) 7 μm, (B) 3 μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell, 129(7), Tessmar-Raible, K., Raible, F., Christodoulou, F., Guy, K., Rembold, M., Hausen, H., and Arendt, D., Conserved sensory-neurosecretory cell types in annelid and fish forebrain: insights into hypothalamus evolution, 1389-1400, Copyright (2007) with permission from Elsevier. Full text @ Cell
