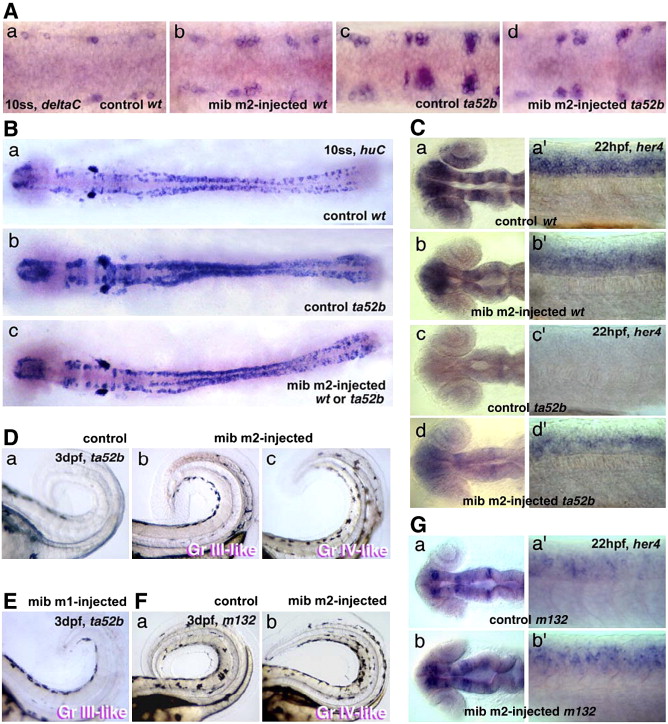

Fig. 2 The mib^ta52b and mib^m132 antimorphic phenotypes are caused by Mib^ta52b and Mib^m132 proteins, respectively. (A–C) Control (or mib-m2-injected) wt (or mib^ta52b) embryos probed with (A) deltaC at 10ss, dorsal view; (B) huC at 10ss, dorsal view, and (C) her4 at 22hpf, (a–d) head region, dorsal view and (a2–d2) trunk region, lateral view. (D–F) 3dpf tail pigment phenotype in panel D (a) control mib^ta52b or (b, c) mib-m2-injected mib^ta52b embryos, (E) mib-m1-injected mib^ta52b embryos and (F) (a) control mib^m132 or (b) mib-m2-injected mib^m132 embryos. All are lateral views. (G) her4 expression at 22hpf in control or mib-m2-injected mib^m132 embryos, (a–b) head region, dorsal view and (a′–b′) trunk region, lateral view. All are head to the left.
