Fig. 4
- ID
- ZDB-IMAGE-061206-48
- Genes
- Publication
- Cadwallader et al., 2006 - Combinatorial expression patterns of heparan sulfate sulfotransferases in zebrafish: II. The 6-O-sulfotransferase family
- All Figures
- Figures for Cadwallader et al., 2006
|
Figure Caption

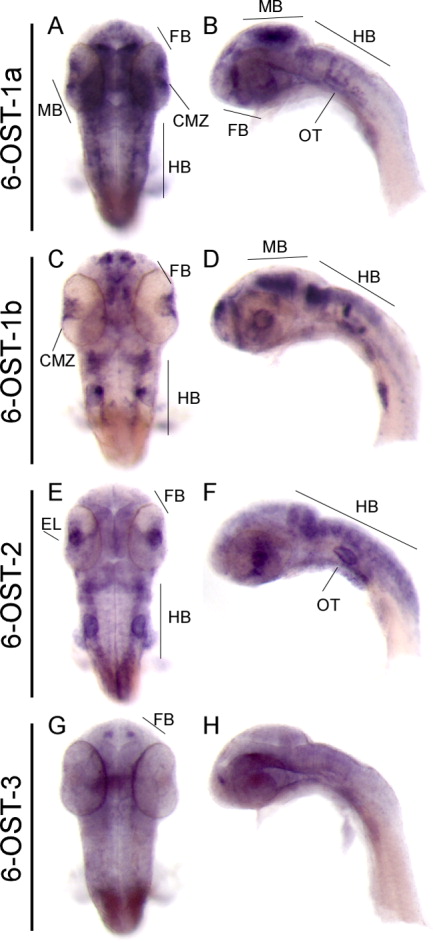

Fig. 4 Expression of 6-O-sulfotransferase (6-OST) family members in the 36 hours postfertilization (hpf) brain. A,B: Dorsal (A) and lateral (B) expression of 6-OST-1a. C,D: Dorsal (C) and lateral (D) expression of 6-OST-1b. E,F: Dorsal (E) and lateral (F) expression of 6-OST-2. G,H: Dorsal (G) and lateral (H) expression of 6-OST-3. CMZ, ciliary marginal zone; EL, eye lense; FB, forebrain; HB, hindbrain; MB, midbrain; OT, otic vesicle.
