FIGURE

Figure 7

ID

ZDB-FIG-260501-78

Publication

Kakiailatu et al., 2026 - Impact of enteric neuronal loss on intestinal cell composition

Other Figures

All Figure Page

Back to All Figure Page

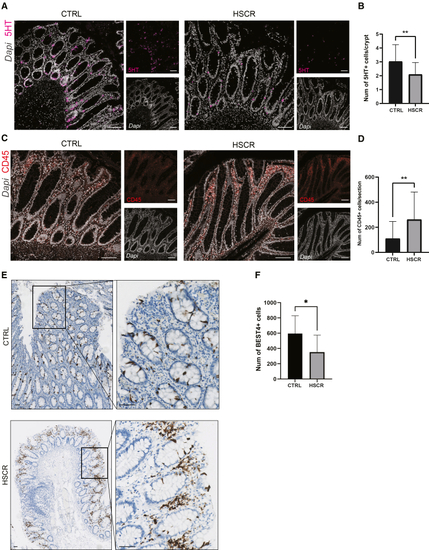

Figure 7

Immunohistochemical validation and quantification in tissue collected from patients with HSCR

(A) IHC validation of 5-HT in control and HSCR aganglionic tissue. DAPI is shown in gray and 5-HT+ cells in magenta. Scale bars represent 100 μm.

(B) Graph shows a significant decrease of 5-HT+ cells per crypt in aganglionic tissue of patients with HSCR (∗∗: p = 0.0027, Student’s t test).

(C) IHC validation of CD45⁺ cells in control and HSCR aganglionic tissue. DAPI is depicted in gray and CD45⁺ cells in red. Scale bars represent 100 μm.

(D) Graph shows a significant increase of CD45⁺ cells in HSCR aganglionic tissue (∗∗: p = 0.008, Welch’s t test).

(E) IHC validation for BEST4 in control and HSCR aganglionic tissue, with zoomed-in views on the right. Scale bars represent 200 μm.

(F) Graph shows a significant decrease of BEST4+ enterocytes in aganglionic tissue of patients with HSCR (∗: p = 0.029, Student’s t test).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ iScience
