FIGURE

Figure 7.

ID

ZDB-FIG-260414-86

Publication

El-Zoheiry et al., 2026 - Combating Drug Resistance in Mycobacterium Tuberculosis: A Combinatorial in Silico and Experimental Modeling Approach Toward Novel ATP Synthase Inhibitor Discovery

Other Figures

All Figure Page

Back to All Figure Page

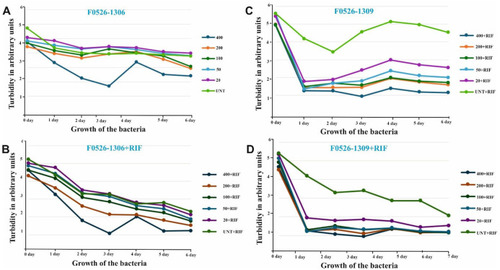

Figure 7.

Inhibition of Mycobacterium marinum growth under different treatment conditions. (A) Treatment with compound F0526-1306 alone resulted in a reduction in bacterial growth. (B) No significant inhibition was observed when F0526-1306 was combined with rifampicin. (C) Treatment with compound F0526-1309 alone showed a dose-dependent inhibition of bacterial growth. (D) F0526-1309, in combination with rifampicin, also inhibited bacterial growth, indicating potential synergistic activity. (UNT, untreated control; RIF, rifampicin alone at a fixed concentration of 400 µg/mL; Compound, test compounds at 20-400 µM; Compound + RIF, combination treatment).
