Figure 3.

ID

ZDB-FIG-260414-84

Publication

El-Zoheiry et al., 2026 - Combating Drug Resistance in Mycobacterium Tuberculosis: A Combinatorial in Silico and Experimental Modeling Approach Toward Novel ATP Synthase Inhibitor Discovery

Other Figures

Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
Figure 10.

All Figure Page

Back to All Figure Page

Figure 3.

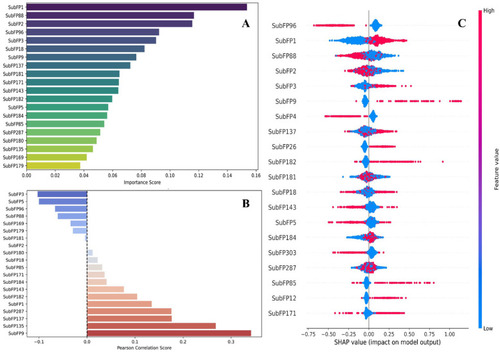

(A) VIP plot, (B) Pearson correlation plot, (C) SHAP analysis of the final ANN-QSAR model’s training data set to elucidate key molecular features contributing toward Mtb ATP synthase inhibition.
