FIGURE

Figure 6

ID

ZDB-FIG-260215-19

Publication

Peng et al., 2026 - Estrogen Receptor 2b Is Involved in Regulating Gonadotropin-Inhibitory Hormone Expression During Early Development in Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Figure 6

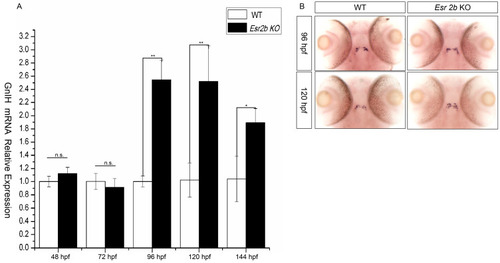

The difference in GnIH mRNA expression between wild-type and esr2b knockout zebrafish at different developmental stages. (A) qPCR was also performed to detect the difference in GnIH mRNA expression level from 48 hpf to 144 hpf. (* represents a significant difference, p < 0.05; ** represents a significant difference, p < 0.01). (B) In situ hybridization to detect between wild-type and esr2b knockout zebrafish embryos at 96 hpf and 120 hpf. At different developing points, 30 embryos of wild-type and esr2b knockout zebrafish were sampled for in situ hybridization and qPCR detection.

Expression Data

Gene:	npvf
Fish:	WT esr2b^{zf4233/zf4233}
Anatomical Terms:	hypothalamus whole organism
Stage Range:	Long-pec to Day 6

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	esr2b^{zf4233/zf4233}
Observed In:	hypothalamus whole organism
Stage Range:	Day 4 to Day 6

Phenotype Detail
