FIGURE 2

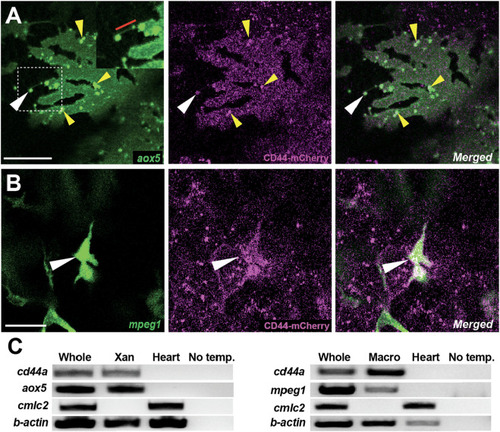

Localization of CD44a protein in xanthoblasts and macrophages. (A) CD44-mCherry expression across the xanthoblast cell membrane. CD44 is also notably present in the airineme vesicle (white arrowhead) and in the airineme blebs (yellow arrowheads). The airineme filament is indicated with a red bar in the inset. (B) CD44-mCherry expression in macrophages (white arrowheads). (C) RT-PCR for cd44a in isolated xanthophores (xan) and macrophages, and no template control. Whole cDNA was used as a positive control and a heart sample as a negative control. Scale bars represent 20 µm (A,B).
