FIGURE 1

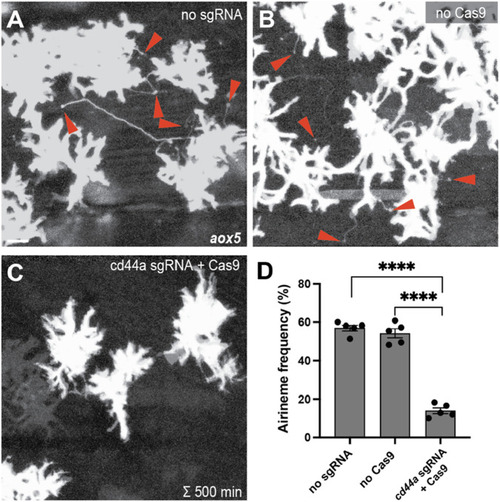

Gene knock-out of cd44a results in a significant reduction in airineme extension. (A,B) Merged time-lapse frames over 500 min display airinemes. Red arrowheads mark airineme vesicles. (C,D) The extension of airinemes was significantly decreased in embryos injected with cd44a sgRNA/Cas9, (F₂, ₁₂) = 172.8, P < 0.0001, 5 larvae each). Statistically significant results were evaluated using one-way ANOVA, followed by Tukey’s HSD post hoc test. Scale bars represent 20 µm. Error bars denote mean ± SEM. Images were overexposed to visualize thin airineme filaments.
