FIGURE

Fig. 9

ID

ZDB-FIG-250812-26

Publication

Zhong et al., 2025 - Antithrombotic effect in zebrafish of a fibrinolytic protein EPF3 from Dilong (Pheretima vulgaris Chen) and its transport mechanism in Caco-2 monolayer through cell bypass pathway

Other Figures

All Figure Page

Back to All Figure Page

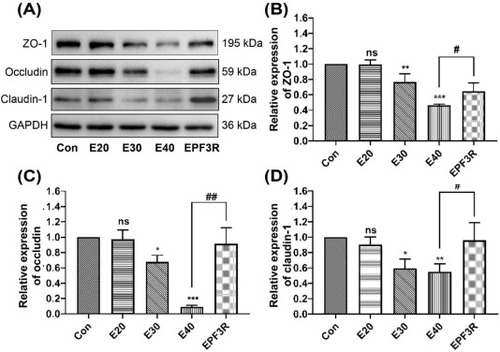

Fig. 9

Effect of EPF3 on the expression of tight junction-related protein in Caco-2 cells was analyzed by Western blot. (A) Representative blots of ZO-1, occludin, and claudin-1. The quantification of the protein expression levels of ZO-1 (B), occludin (C), and claudin-1 (D). Data were presented as mean ± standard deviation (n = 3). nsP > 0.05, *P < 0.05, **P < 0.01, and ***P < 0.001, vs the Con group. #P < 0.05 and ##P < 0.01, vs the E40 group. Con: control group treated without EPF3; E20: group treated with 20 μg/mL EPF3; E30: group treated with 30 μg/mL EPF3; E40: group treated with 40 μg/mL EPF3; EPF3: a fibrinolysin monomer isolated and purified from Pheretima vulgaris Chen; EPF3R: group treated with 40 μg/mL EPF3 for 12 h, followed by EPF3 removal and cultured in minimum essential medium for another 12 h; GAPDH: glyceraldehyde-3-phosphate dehydrogenase; ZO-1: zonula occludens-1.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ J Integr Med
