Fig. 5

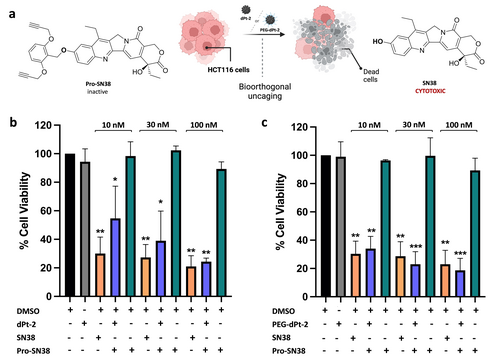

a) Pt-mediated conversion of prodrug Pro-SN38 into cytotoxic SN38 (created with BioRender). b) Cell viability assay in HCT116 colon carcinoma cells under different treatment conditions using dPt-2. c) Cell viability assay in HCT116 colon carcinoma cells under different treatment conditions using PEG-dPt-2. [Prodrug/drug]=10–30–100 nM. Cells were treated with dPt-2 (80 μg/mL) or PEG-dPt-2 (80 μg/mL) followed by the prodrug. PrestoBlue viability assay was performed 5 days after treatment. Error bars: ±SEM, n=3. Significant differences relative to DMSO control are represented as * P≤0.05, ** P≤0.01, *** P≤0.001.
