Figure 3

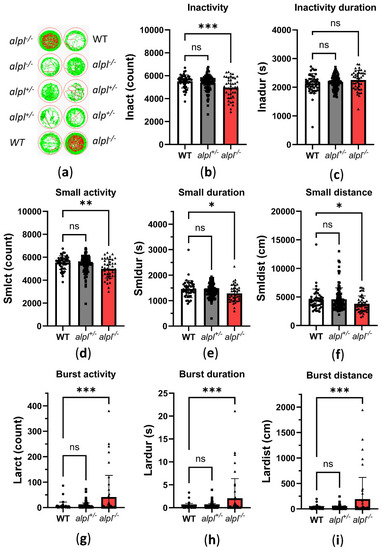

Locomotion analysis of 5 dpf old WT, alpl^+/-, and alpl^-/- zebrafish embryos. (a) Examples of swimming trajectories of 5 dpf old embryos recorded with Zebrabox for 1 h at 28 °C in the dark. Green—movement speed < 30 mm/s (small activity), red—movement speed > 30 mm/s (burst activity), black—no movement (inactivity). (b) Inactivity count. (c) Duration of inactivity. (d) Small activity count. (e) Duration of small activity. (f) Distance swum during small activity. (g) Burst activity count. (h) Duration of burst activity. (i) Distance swum during burst activity. Data are means from n = 45 (WT), n = 105 (alpl^+/-), and n = 42 (alpl^-/-) embryos ± SD. *** p < 0.001, ** p < 0.01, * p < 0.05, and ns—not significant (p > 0.05).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	alpl^{zf4270/zf4270} (TL)
Observed In:	locomotory behavior
Stage:	Day 5

Phenotype Detail
