FIGURE

Fig. 7

ID

ZDB-FIG-250410-20

Publication

Liu et al., 2025 - Knockout of the fcsk gene in zebrafish causes neurodevelopmental defects

Other Figures

All Figure Page

Back to All Figure Page

Fig. 7

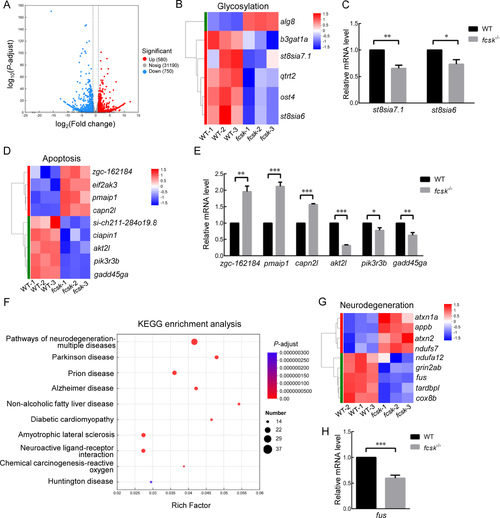

RNA-seq analysis of WT and fcsk−/− zebrafish A: Volcano plot of differentially expressed genes (DEGs) between WT and fcsk−/− zebrafish. Blue represents down-regulated genes (750), red represents up-regulated genes (580), gray represents genes with no significant difference. B: Clustering heatmap of glycosylation-related DEGs. C: mRNA levels of glycosylation-related DEGs detected by RT-qPCR (n=3). D: Clustering heatmap of apoptosis-related DEGs. E: mRNA levels of apoptosis-related DEGs detected by RT-qPCR (n=3). F: KEGG analysis of DEGs related to the nervous system. G: Clustering heatmap of DEGs homologous to human neurodegenerative disease-related genes. H: mRNA levels of neurodegeneration-related DEGs detected by RT-qPCR (n=3). Mean±SEM. *: P<0.05; **: P<0.01; ***: P<0.001.

Expression Data

Genes:	akt2l capn2l fus gadd45ga pik3r3b pmaip1 st8sia6 st8sia7.1 zgc:162184
Fish:	AB fcsk^{hzu301/hzu301} (AB)
Anatomical Term:	whole organism
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	fcsk^{hzu301/hzu301} (AB)
Observed In:	whole organism
Stage:	Day 5

Phenotype Detail
