Fig. 1

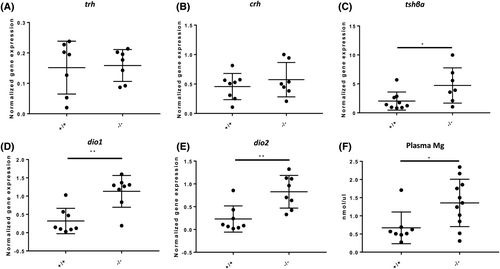

Foxe1 mutants are hypothyroid. (A, B) trh and crh relative gene expression levels in the adult hypothalamus of mutants are equal to wild type. (C) tshβ levels in the pituitary glands of adult foxe1 mutants are increased compared to wild types. (D, E) Relative expression of deiodinases dio1 and dio2 is increased in the livers of adult mutants compared to wild types (A–E, n = 8–10). (F) Hypermagnesemia in plasma of adult foxe1 mutants (n = 19). Data were analyzed with a Student's t-test. |
