FIGURE

Figure 2

ID

ZDB-FIG-250127-75

Publication

Deng et al., 2025 - Investigating the Effect and Potential Mechanism of Rhamnetin 3-O-α-Rhamnoside on Acute Liver Injury In Vivo and In Vitro

Other Figures

All Figure Page

Back to All Figure Page

Figure 2

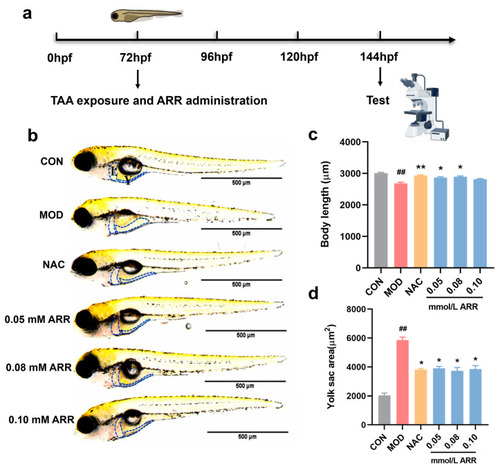

Effects of ARR on TAA-induced zebrafish larvae developmental toxicity. (a) The 72 hpf wild-type AB zebrafish larvae were handled for 3 days (n = 15). (b) Effects of ARR on the body length and yolk sac of zebrafish induced by TAA. Scale bar = 500 μm. (c) The change in body length. (d) The change in the absorption area of the yolk sac. The blue box indicates the location of the liver and yolk sac. L: liver; Y: yolk sac. * p < 0.05, ** p < 0.01 vs. control; ## p < 0.01 vs. model (mean ± SEM).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Pharmaceuticals (Basel)
