Fig. 2

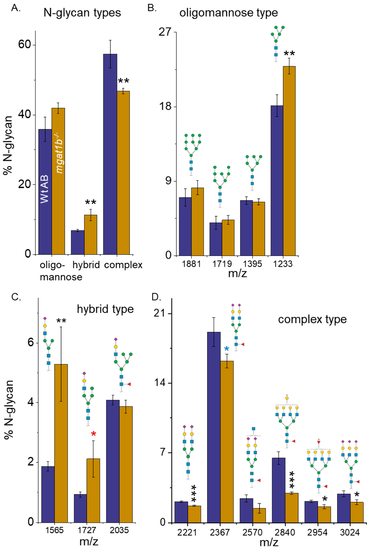

Comparison of N-glycan structures derived from adult Wt AB and mgat1b−/− mutant zebrafish. Averaged MS spectra of released N-glycan types (%) from Wt AB (purple bars) and mgat1b−/− (gold bars) zebrafish (A). Representative bar graphs showing the percents of oligomannose (B), hybrid (C), and complex (D) structures with the corresponding m/z value of the structures. Data are presented as mean ± SEM, n = 4, where n signifies the number of technical replicates, and Wt AB to mutant zebrafish were compared using Student’s t-test (* p < 0.11, * p < 0.08, ** p < 0.05, *** p < 0.01). |
