Fig. 6

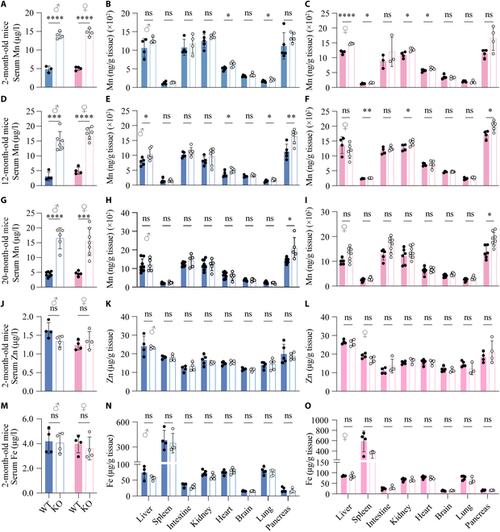

Serum Mn levels are elevated in global Slc39a11 knockout mice. (A to I) Mn levels in the serum and the indicated tissues were measured in 2-month-old (A to C), 12-month-old (D to F), and 20-month-old (G to I) male and female WT and Slc39a11 knockout (KO) mice. (J to O) Summary of Zn (J to L) and Fe (M to O) content measured in the serum and indicated tissues of 2-month-old male and female WT and KO. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001. |
