FIGURE 2

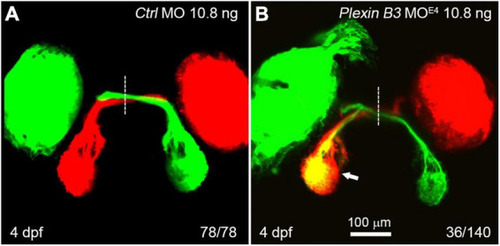

Knocking down Plexin B3 induces retinal axons to misproject into the ipsilateral tectum. (A) In control MO treated embryos, all retinal axons cross the midline and project to the contralateral tectum. (B) In some of the MO^E4 treated embryos (36 out of 140 eyes), retinal axons fail to cross the midline at the chiasm and misproject to the ipsilateral tectum (arrow). Images are dorsal view, rostral to the top. Scale bar, 100 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB + MO1-plxnb3
Knockdown Reagent:	MO1-plxnb3
Observed In:	optic tectum retina axon
Stage:	Day 4
