Fig. 2

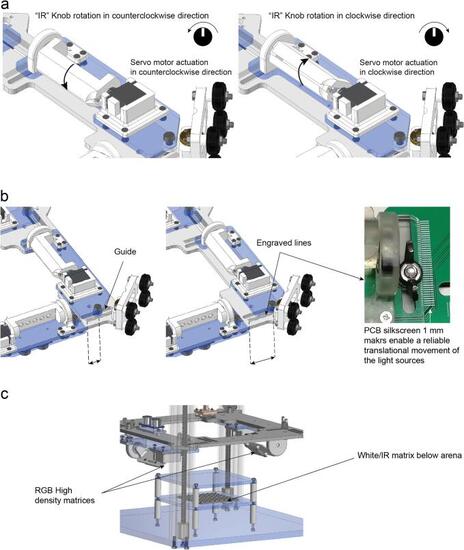

Movements that allow the customization of the device. a. Rotational movement of the infrared light sources are adjusted by rotating the potentiometer. b. The distance from all the light sources (RGB and IR) can be manually adjusted by untightening the M6 screws and sliding the light source platform forwards and backwards. c. Position of the RGB orientable matrices on the top platform and the arena underneath illumination. |
